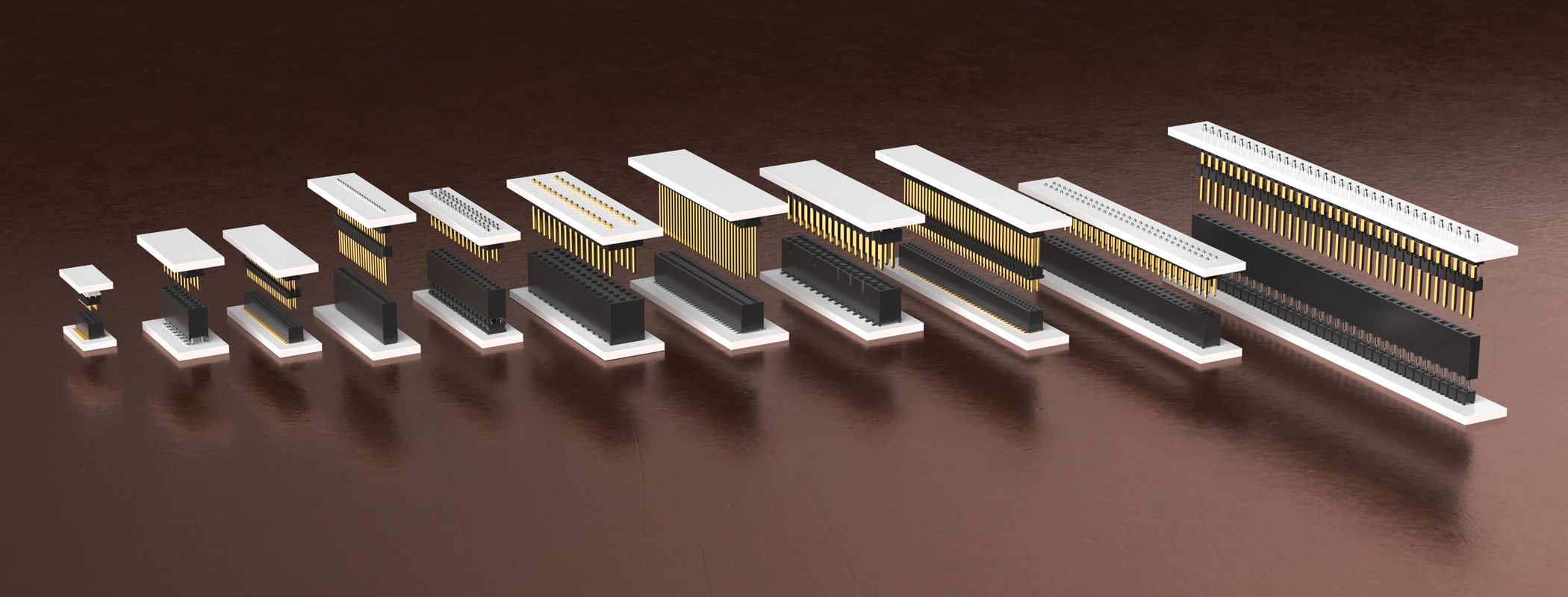

Flexible Stacking Standard Profile Board to Board Terminal Strips

Flexible stacking standard profile board-to-board terminal strips and connectors for low profile, elevated, pass-through, and rugged applications on .100" (2.54 mm) and 2.00 mm pitch.

Flexible Stacking Brochure

Download PDF

0.80 mm (.0315") Pitch Systems

0.80 mm Pitch Terminals & Sockets

0.80 mm pitch terminals and sockets (.0315"), flexible stacking connectors available in a variety of contact systems, position counts, and low profile styles.

Features

Various standard positions available up to 300
Several contacts styles available
Low profile systems available
Available up to 300 I/Os
Edge mount styles available
Several meet E.L.P.™ (Extended Life Product™) standards

Products

1.00 mm (.0394") Pitch Systems

1mm Pitch Square Post Terminals and Sockets (.0394")

1mm pitch square post terminals and sockets (.0394"), flexible stacking, and available in a variety of contact systems, position counts, and low profile styles.

Features

Various board stacking styles and options
Rugged options available
Up to 100 I/Os
Flexible stack height features
E.L.P.™ (Extended Life Product™) available

Products

.050" x .050" Micro Pitch Systems

.050" x .050" Micro Pitch Board-to-Board Terminal and Socket Strips

.050" (1.27mm) x .050" (1.27mm) pitch board-to-board terminal and socket strips in a variety of board stacking heights, orientations and contact styles.

Features

Series up to 10,000 cycles
Wide array of board stacking heights
Various mating orientations
Rugged options
Numerous contact styles
Stack heights .235" (5.91 mm) - .754" (19.15 mm)
Available up to 100 pins

Products

.050" x .100" Pitch Systems

Micro pitch .050" x .100" pitch terminals and sockets, high-density pin and socket systems with a choice of stack heights.

Features

Standard and high-temp designs
Low profile and skyscraper board stacking
Optional polarization, alignment pins and locking clips
Flex shroud available

Products

2.00 mm (.0787") Pitch Socket Strips

2mm Sockets, 2.00 mm (.0787") Pitch Socket Strips

Rugged 2mm sockets, 2.00 mm (.0787") pitch socket strips with flexibility on three axes.

Features

Choice of four contact systems
Vertical and right-angle/horizontal
Through-hole, surface mount and press fit
Standard, low profile and elevated
One through six rows
Self-nesting PC/104-Plus™ Sockets
Pass-through and bottom entry contacts

Products

2.00 mm (.0787") Pitch Terminal Strips

2 mm Terminals, (.0787") Pitch Terminal Strips

2 mm Terminals, (.0787") Pitch Terminal strips with 0.50 mm (.020") square posts and flexibility on three axes.

Features

Flexible terminal strips and board stackers
Low profile, skyscraper, vertical, right-angle
Through-hole, surface mount, press fit
Modify post or stacker height as standard
One through six rows
FleXYZ™ design flexibility in three axes
Self-mating socket/terminal strips

Products

.100" (2.54 mm) Pitch Socket Strips

.100" pitch socket strips, 2.54 mm square post socket strips, with contact and design flexibility.

Features

Choice of three contact systems
Vertical and right-angle/horizontal
Through-hole, surface mount and press-fit terminations
Standard, low profile and elevated designs
Single, double and triple row designs on specific series
Bottom mount or pass-through styles
E.L.P.™ certified systems available

Products

.100" (2.54 mm) Pitch Terminal Strips

.100" (2.54 mm) Pitch Square Post Terminal Strips

.100" pitch socket strips, 2.54 mm square post terminal strips, with contact and design flexibility.

Features

Flexible terminal strips and board stackers
Shrouded, skyscraper and low profile
Through-hole, surface mount, mixed technology and press fit
Modify post or stacker height as standard
Vertical, perpendicular and coplanar mating
Wide variety of standard options and features including polarization, locking clips, alignment pins, etc.

Products

Precision Screw Machined Strips

.100” (2.54 mm) pitch screw machine terminal strips and socket strips in low profile and elevated designs, with multi-finger BeCu contacts and precision machined shell for ultimate high reliability.

Features

Multi-finger BeCu contacts
Precision machined shells
Ultimate in high reliability
Low profile to elevated board spacings
Single and double row
Wide variety of socket tail and terminal designs

Products

Shunts and Jumpers

Terminal Shunts & Terminal Jumpers

Samtec offers solutions for connector support, including single or ganged terminal shunts and terminal jumpers, and hardware such as precision standoffs for mating assistance.
