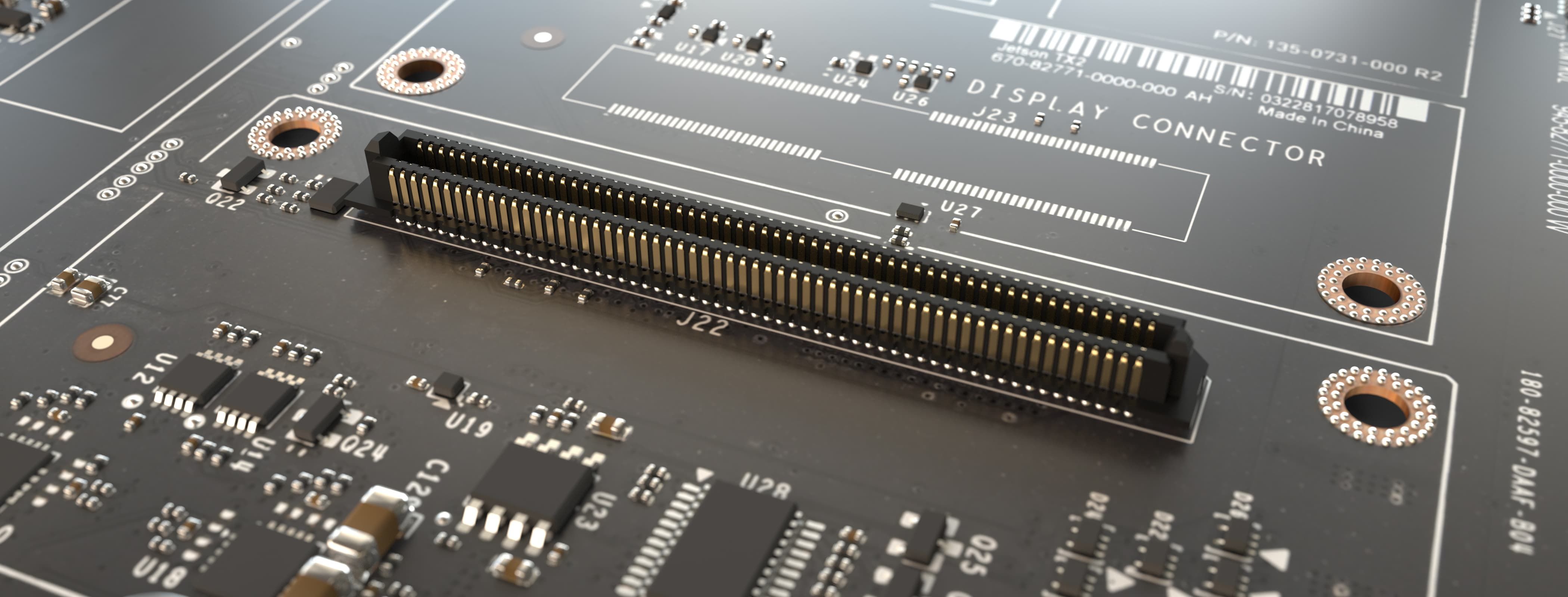

These 0.635 mm pitch high-density, open-pin-field arrays feature up to 400 high-speed Edge Rate® contacts in a slim, low-profile design.
AcceleRate® HD features high-speed Edge Rate® contacts designed for high-speed, high-cycle applications.
The surface of the contact is milled creating a smooth mating surface, which reduces wear on the contact increasing durability and cycle life. Also, lower insertion and withdrawal forces allow zippered unmating.
Incredibly dense with up to 400 total I/Os
Low profile 5 mm to 16 mm stack heights
Slim 5 mm width
4-row design; 10 - 100 positions per row
Edge Rate® contact system optimized for signal integrity performance
Open-pin-field design for grounding and routing flexibility
Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
Right-angle and cable in development
SureWare™ ultra rugged guide post standoffs available (GPSO)
Incredibly dense with up to 400 total I/Os
Low profile 5 mm to 16 mm stack heights
Slim 5 mm width
4-row design; 10 - 100 positions per row
Edge Rate® contact system optimized for signal integrity performance
Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
Incredibly dense with up to 400 total I/Os
Low profile 5 mm to 16 mm stack heights
Slim 5 mm width
4-row design; 10 - 100 positions per row
Edge Rate® contact system optimized for signal integrity performance
Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
Allows for 0.035" of initial misalignment; alignment starts before connectors engage
Assists with “blind mate” for ultra micro, fine pitch mezzanine connectors
4 mm - 30 mm stack heights
MIL-DTL stainless steel
Pairs well with NVAM/NVAF, APM6/APF6, ADM6/ADF6 and UMPT/UMPS
