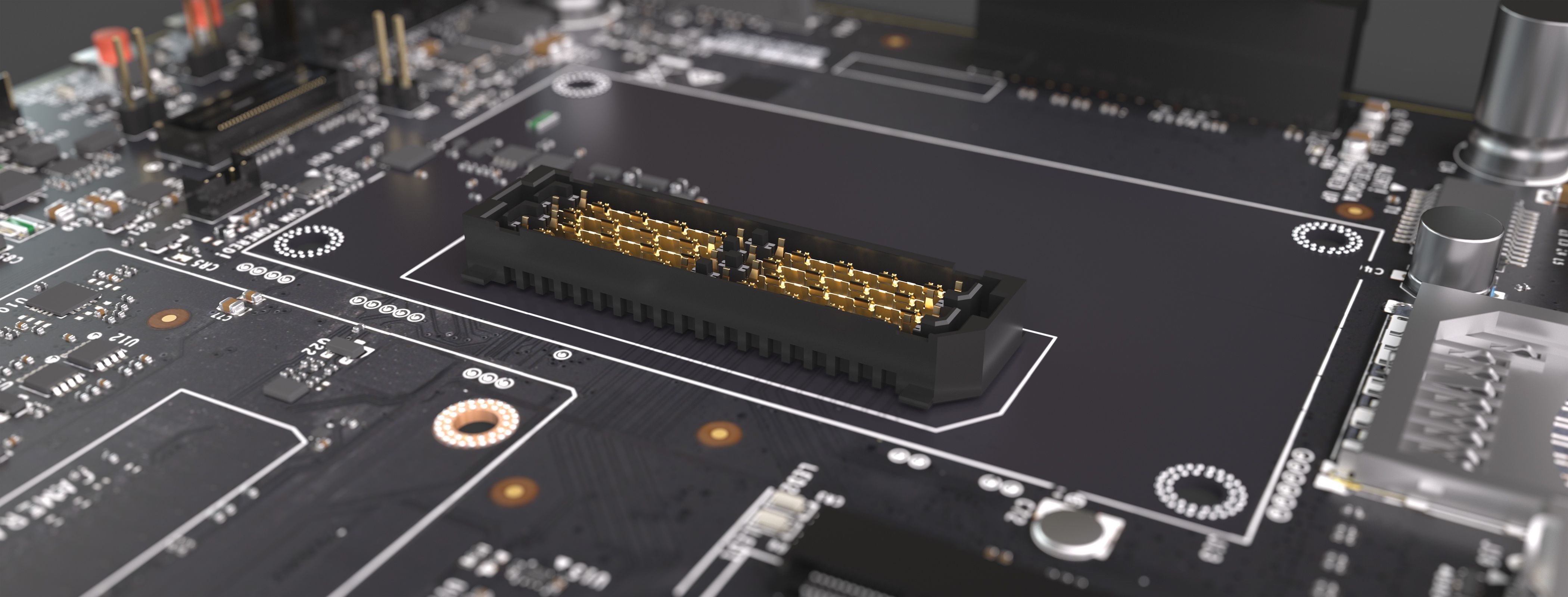

NovaRay® combines extreme density and performance for 128 Gbps PAM4 per channel in 40% less space than traditional arrays.
The innovative design of NovaRay® combines extreme density and extreme performance, which is critical as system sizes decrease and speeds increase. The fully shielded differential pair design and two reliable points of contact contribute to the industry leading 4.0 Tbps aggregate data rate.
| Aggregate Data Rate (PAM4) | 1024 Gbps | 1536 Gbps | 2048 Gbps | 2048 Gbps | 3072 Gbps | 4096 Gbps | 9216 Gbps* |
|---|---|---|---|---|---|---|---|
| Total No. of Banks | 1 | 1 | 1 | 2 | 2 | 2 | 3* |
| Total No. of Rows | 2 | 3 | 4 | 2 | 3 | 4 | 6* |
| Total No. of Pairs | 8 | 12 | 16 | 16 | 24 | 32 | 72* |
| In Development* |
128 Gbps PAM4 per channel
7, 9, 10 and 12 mm stack heights
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Two points of contact ensure a more reliable connection
Minimal variance in data rate as stack height increases
Analog Over Array™ capable
128 Gbps PAM4 per channel
7, 9, 10 and 12 mm stack heights
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Two points of contact ensure a more reliable connection
Minimal variance in data rate as stack height increases
Analog Over Array™ capable
Allows for 0.035" of initial misalignment; alignment starts before connectors engage
Assists with “blind mate” for ultra micro, fine pitch mezzanine connectors
4 mm - 30 mm stack heights
MIL-DTL stainless steel
Pairs well with NVAM/NVAF, APM6/APF6, ADM6/ADF6 and UMPT/UMPS
128 Gbps PAM4 per channel
40% smaller than conventional cable solutions
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Rugged metal latching system
Mates with NovaRay® cable assembly (NVAC Series)
128 Gbps PAM4 per channel
40% smaller than conventional cable connectors
2, 3 or 4 rows
1 or 2 banks with up to 16 pairs/bank
Rugged metal latching for mating with NovaRay® cable assembly
Ultra-high density with up to 128 differential pairs in a single connector
128 Gbps PAM4 performance per channel
Supports blind mate applications
Surface mount for better density and performance
Offset footprint for optimum signal integrity
Flyover® cable assembly in design
Optional guidance and keying
Standard weld tabs for a secure connection to the board
Ultra-high density with up to 128 differential pairs in a single connector
128 Gbps PAM4 performance per channel
Supports blind mate applications
Surface mount for better density and performance
Offset footprint for optimum signal integrity
Optional guidance and keying
Standard weld tabs for a secure connection to the board
128 Gbps PAM4 performance (Cable-to-Cable and Cable-to-Board)
Guide posts assist with mating and help ensure a reliable connection
Configurable signal banks in a single connector for ultimate design flexibility (choose wafer signaling design)
Wafer signaling options: differential pair, open-pin-field (single-ended) or power
34 AWG 92 Ω Eye Speed Thinax™ ultra low skew twinax, 34 AWG 50 Ω Eye Speed ThinSE™ thin micro coax, or 30 AWG power cable
Outside-the-box micro rugged backplane cable assembly
128 Gbps PAM4 performance (Cable-to-Cable and Cable-to-Board)
Guide posts assist with mating and help ensure a reliable connection
Configurable signal banks in a single connector for ultimate design flexibility (choose wafer signaling design)
Wafer signaling options: differential pair, open-pin-field (single-ended) or power
34 AWG 92 Ω Eye Speed Thinax™ ultra low skew twinax, 34 AWG 50 Ω Eye Speed ThinSE™ thin micro coax, or 30 AWG power cable
Internal, inside-the-box cable assembly with end 2 connector variety
