SPACE SAVING DESIGNS • HERMAPHRODITIC • HIGH-DENSITY

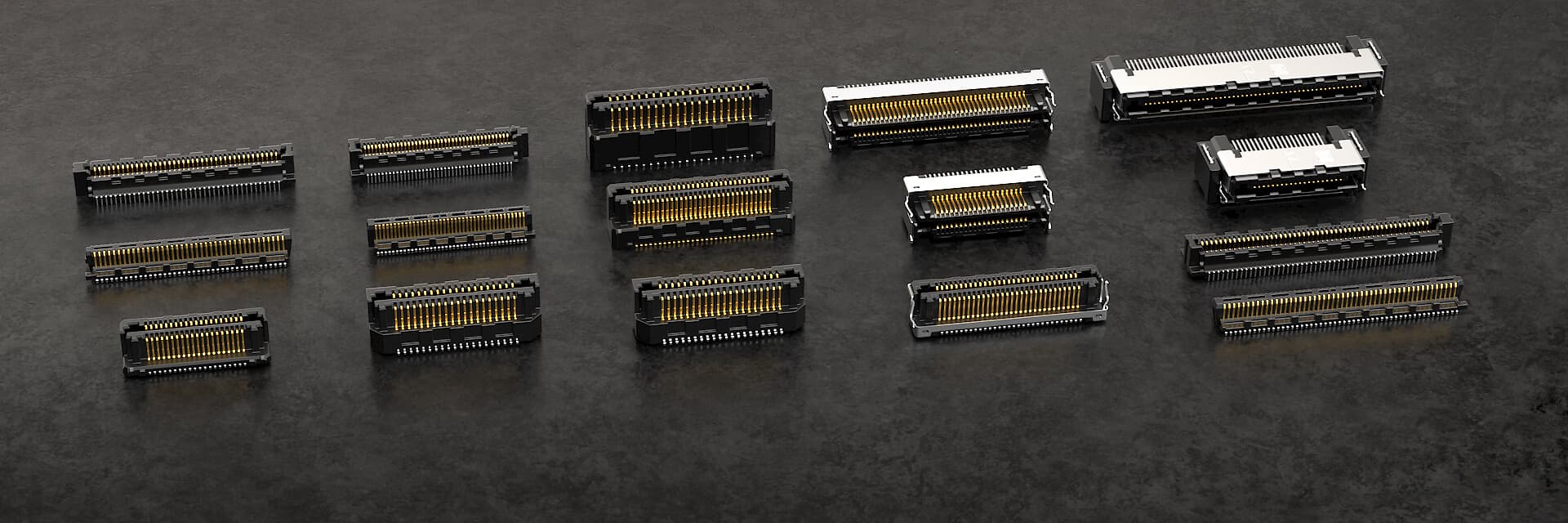

Samtec's ultra micro interconnects feature fine pitches, slim body designs and extremely low profiles for incredible design flexibility with high-speed performance up to 56 Gbps PAM4. Self-mating Razor Beam™ interconnects reduce inventory costs, and can be interchanged for a variety of stack heights from 5 to 12 mm with optional EMI shielding. Razor Beam™ contacts feature undercut retention notches with an audible click when mated; this increases mating/unmating forces by 4 to 6 times compared to typical micro pitch connectors.
Micro Blade & Beam systems feature incredibly fine pitches and ultra low stack heights down to 2 mm. Jack screw standoffs are available for unmating assistance and protection from component damage.
High-speed, high-density Razor Beam™ self mating connectors reduce inventory costs and are available in a variety of pitches and lead styles for increased flexibility.
Features
0.50 mm, 0.635 mm or 0.80 mm pitch systems
Razor Beam™ contacts for high-speed and fine-pitch systems
Mating and unmating forces approximately 4-6x greater than typical micro pitch connectors
Shielded option for EMI protection
Self-mating connectors reduce inventory costs and can be interchanged for varying stack heights
Samtec offers a variety of SureWare™ hardware for connector support, including precision standoffs, alignment hardware, and guidance modules to assist with mating/unmating and help ensure a reliable connection.
Features
Standoffs for 4 mm to 30 mm stack heights
Reduces risk for component damage on boards
SureWare™ guide post standoffs (GPSO) allow for 0.035" of initial misalignment and assist with "blind mate"
Standoffs designed for PCI/104-Express™ and VITA™ standards
