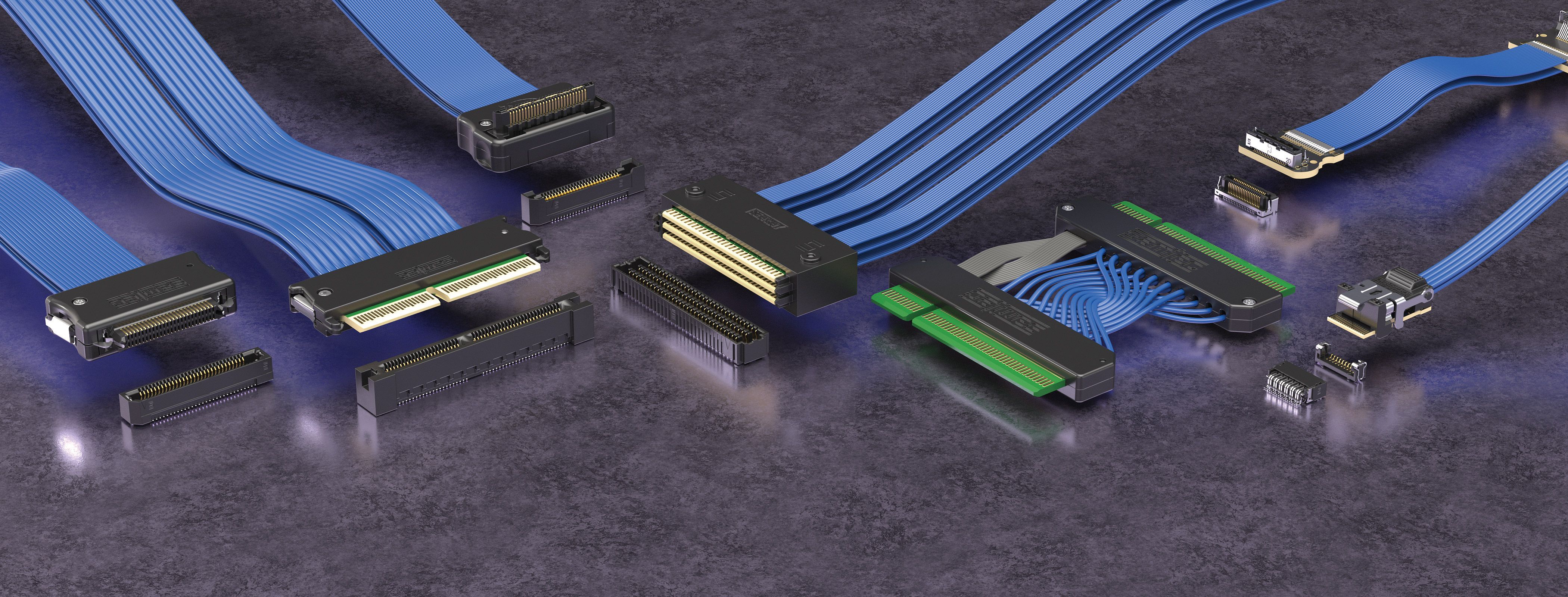

High-Speed Cable Assemblies

HIGH-DENSITY • DESIGN FLEXIBILITY • HIGH RELIABILITY

Samtec's high-speed cable assemblies feature Eye Speed® cable technology for excellent signal integrity performance with individual copper serve or tape shielding. The conductor is stranded for a small bend radii and dynamic high flexing cycle applications, and cost-effective ribboned cable eliminates discrete wires.

With up to 14 Gbps performance, these high-speed cables have mix-and-match end options for application specific requirements with extensive customizing capabilities.

  • Single-ended 50 Ω and differential 100 Ω standards
  • 26 - 38 AWG coax and twinax construction
  • Rugged features and options including strain relief, plastic housings, screw downs, latches, locks, etc.
Eye Speed Logo
14 Gbps
High-Speed Cable Assemblies Brochure

High-Speed Cable Assemblies Brochure

Download PDF
Extreme Flexibility

Contact HDR@samtec.com for custom assemblies.

SEARAY™ High Density Array Cable Assemblies

SEARAY™ High Density Array Cable Assemblies

These high speed, high density array cable assemblies feature micro coax cable and rugged Edge Rate® contacts for performance up to 14 Gbps.

Features

  • Performance to 14 Gbps

  • Edge Rate® contacts reduce broadside coupling

  • Positive latching system

  • Terminal end options

  • Designed for rugged micro pitch applications

  • 36 AWG coax high-speed cable

  • 50 ohm single-ended signal routing

Products
Product Family Image for Searay™ High Density Array Cable Assemblies

SEARAY™ 0.80 mm Pitch High-Density Array Cable Assemblies

SEARAY™ 0.80 mm Pitch High-Density Array Cable Assemblies

These ultra high-density, high-speed .8mm pitch array cable assemblies feature micro coax cable and rugged Edge Rate® contacts for performance up to 14 Gbps and 50% board space savings.

Features

  • Performance to 14 Gbps

  • 50% board space savings versus .050" (1.27 mm) pitch arrays

  • Edge Rate® contacts reduce broadside coupling

  • 50 ohm single-ended signal routing

  • Supports PCIe® 3.0 and SAS3 protocols

  • Designed for rugged micro pitch applications

  • 34 AWG micro ribbon coax cable

  • Up to 300 I/Os

  • 8 and 10 row designs

Products
Product Family Image for SEARAY™ 0.80 mm

Q Series® High Speed Ground Plane Cables

Q Series® High Speed Ground Plane Cables

Q Series® high speed ground plane cables feature an integrated ground and power plane, micro coax, and twinax cable, and offer performance up to 14 Gbps.

Features

  • Performance to 14 Gbps

  • Surface mount, edge mount or panel mount terminations

  • 50 ohm single-ended and 100 ohm differential pair signal routing

  • Rugged screw mounts or retention pin options

Products
Product Family Image for Q Series® High Speed Ground Plane Cables

Q Rate® Slim High-Speed Cables & Connectors

Q Rate® Slim High-Speed Cables & Connectors

Q Rate® slim high-speed cables & connectors feature an integrated power/ground plane and rugged Edge Rate® contacts for high-reliability and performance.

Features

  • Performance to 14 Gbps

  • 50 ohm single-ended and 100 ohm differential pair signal routing

  • Edge Rate® contacts reduce broadside coupling

  • Slim body design

  • 32 AWG twinax and 34 AWG coax high-speed cable

Products
Product Family Image for Q Rate® Slim High Speed Cables & Connectors

Edge Card Twinax High-Speed Cable Assemblies

Edge Card Twinax High-Speed Cable Assemblies

These edge card cable assemblies feature Eye Speed® twinax cable for high-speed optimized performance.

Features

  • Performance to 14 Gbps (ECDP), 16 Gbps (FEDP) and 64 Gbps PAM4/32 Gbps NRZ (GC6)

  • 100 ohm differential pair signal routing

  • Micro 0.50 mm, 0.60 mm and 0.80 mm pitch

  • .062" (1.60 mm) thick card

  • Rugged metal latching and shielding

  • Vertical and right-angle PCB connectors

Products
Product Family Image for Edge Card Twinax High-Speed Cable Assemblies

PCI Express® Cables and Connectors

High-Speed PCI Express® Cables and Connectors

High-speed PCI Express® cable jumpers support one, four, eight and sixteen PCI Express® links.

Features

  • Performance to 14 Gbps

  • Supports 1, 4, 8 and 16 PCI Express® links

  • Standard positions of 36, 64, 98 and 164

  • 30 AWG standard ribbon cable and shielded twinax cable

Products
Product Family Image for PCI Express® Cables And Assemblies

FireFly™ Optical Transceivers

FireFly™ Optical Transceivers

Samtec's FireFly™ Micro Flyover System™ embedded and rugged optical transceivers take data connection "off board" for up to 28 Gbps per lane with a path to 112 Gbps PAM4 via optical cable at greater distances, or copper for cost optimization.

Features

  • High-speed performance to 28 Gbps per lane

  • x4 and x12 designs

  • Interchangeability of copper and optical

  • Variety of integral heat sink and End 2 options

  • Micro rugged two-piece connector

  • Extended temperature and PCIe®-Over-Fiber solutions

Products
Firefly Active Optical Transceiver

Razor Beam™ Self Mating High Speed Rugged Cables

Razor Beam™ Self Mating High Speed Rugged Cables

Razor Beam™ self mating high speed rugged cables come in vertical or right angle options and offer rugged screw down options for added reliability

Features

  • 50 ohm single-ended signal routing

  • 38 AWG micro ribbon coax cable

  • Rugged screw down option

  • Vertical or right-angle end options

  • 0.50 mm (.0197") pitch

Products
Product Family Image for Razor Beam™ Self Mating High Speed Rugged Cables

Edge Rate® High-Speed Cable Assemblies

Edge Rate® High-Speed Cable Assemblies

These Edge Rate® high-speed cable assemblies feature a smooth milled contact surface, which reduces the wear on the contact, increasing durability and life, as well as Eye Speed® micro coax or twinax cable.

Features

  • Performance to 14 Gbps

  • 50 ohm single-ended and 100 ohm differential pair signal routing

  • Designed for rugged micro pitch applications

  • Edge Rate® contacts reduce broadside coupling

  • Latching system available

  • Hot swappable

Products
Product Family Image for Edge Rate® High-Speed Cable Assemblies

Low Cost Coax

Micro Coax Cable Assemblies, High-Speed, Low Cost, and Space-Saving

High-speed, low cost, micro coax cable assemblies featuring 50 Ohm single-ended signal routing, 38 AWG micro coax cable, and a space-saving compact design.

Features

  • 50 ohm single-ended signal routing

  • 38 AWG micro coax cable

  • Compact design for space saving applications

Products
Product Family Image for Low Cost Coax

Direct Connect Cables

Direct Connect Cables with Press Fit Termination

High-speed, low cost direct connect cables with press-fit termination directly to the PCB.

Features

  • Press-fit termination to the PCB board

  • Ultra low 3 mm profile

  • Supports and surpasses PCIe® 3.0 speed at 2 meters

  • 100 ohm differential pair signal routing

  • 30 AWG twinax ribbon cable

Products
Product Family Image for Direct Connect Cables

Eye Speed® I/O Cable Assemblies

Eye Speed® I/O

This rugged high-speed latching I/O cable system features rugged positive latching and supports multiple protocols, such as SAS, SATA, Ethernet, PCIe® and more.

Features

  • Small form factor for space saving applications

  • Micro rugged latching system

  • Shielded housing for EMI protection or sealed cable for IP68 applications

  • Supports SAS, SATA, Fibre Channel, Ethernet, PCIe® and InfiniBand™ protocols

  • High-reliability Edge Rate® contacts

Products
Product Family Image for Eye Speed® I/O Cable Assemblies

Eye Speed® HD

Eye Speed® HD High-Speed I/O Systems

Eye Speed® HD ultra high-density, high-speed cable system with HyperTransport™ HT3.1 performance, designed for rugged applications and EMI protection.

Features

  • Superior signal integrity with HyperTransport HT3.1 performance

  • Industry's densest I/O cable system

  • Rugged latching system

  • Shielded for EMI protection

  • Cable, connector, and cage available

  • Rugged design

Products
Product Family Image for Eye Speed® HD
