SI Evaluation Kits for evaluating FQSFP-DD product Double Density Flyover® QSFP28 Cable System
Overview
As data rates increase, trace length on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The FQSFP-DD SI Evaluation Kits provide system designers and SI engineers an easy-to-use solution for testing FQSFP-DD Product Double Density Flyover® QSFP28 Cable System with various End 2 options.
The FQSFP-DD to NovaRay® Flyover® SI Evaluation Kit (REF-205605-X.XX-XX) routes eight high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to NovaRay® cable assembly and PCB-mount connectors.

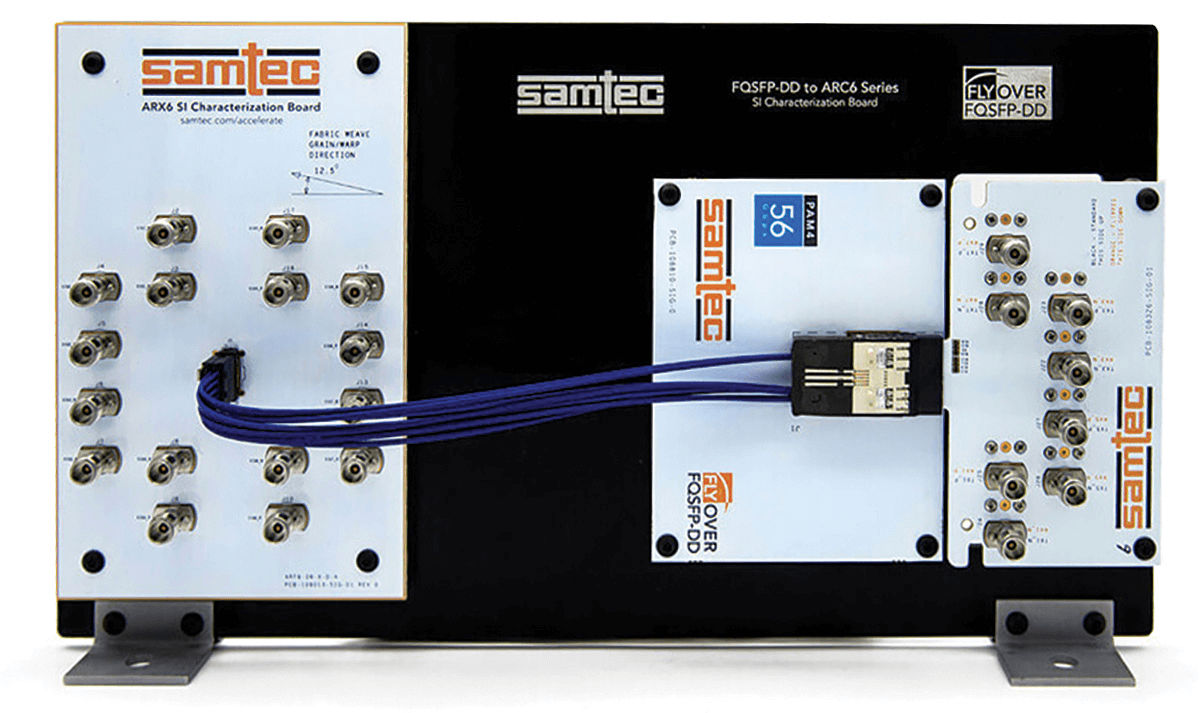

The FQSFP-DD to AcceleRate® Flyover® SI Evaluation Kit (REF-203424-X.XX-XX) routes eight high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to AcceleRate® cable assembly and PCB-mount connectors.
The FQSFP-DD to Si-Fly® Flyover® SI Evaluation Kit (REF-224261-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to Si-Fly® Low-Profile, High-Density Interconnect System.

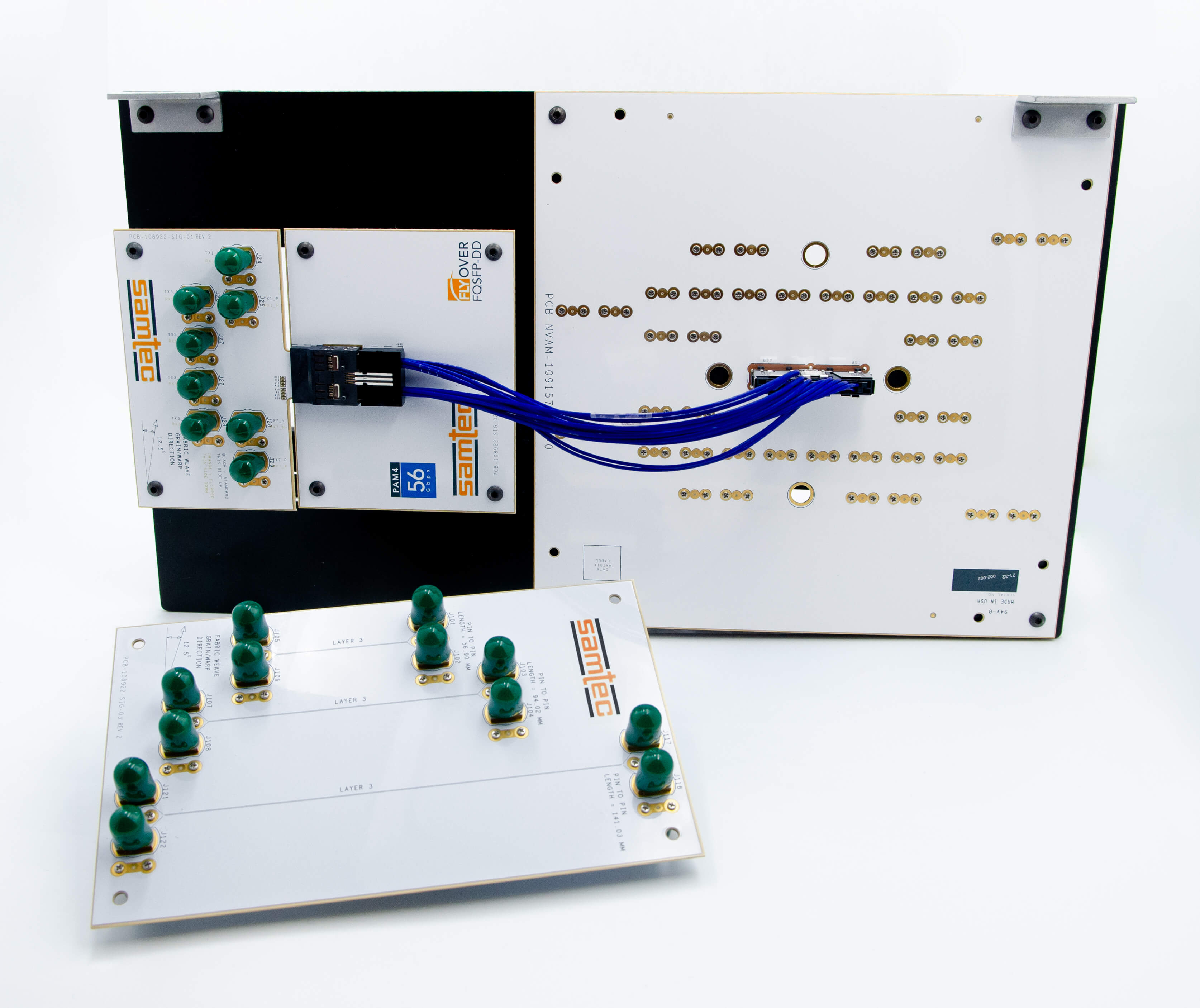

Samtec Part No. REF-205605-X.XX-XX Pictured
The FQSFP-DD SI Evaluation Kits deliver high-quality systems with robust mechanical design. Please contact Samtec's technical experts at KitsAndBoards@samtec.com for additional information.
Features
- Two PCB system with compact form factor
- One FQSFP-DD product Double Density Flyover® QSFP28 Cable Assembly
- Supports multiple FQSFP-DD product cable lengths and various End 2 options
- Supports multiple high-precision RF connector options (1.85 mm/2.40 mm/2.92 mm)
- Optimized SI performance via Samtec Final Inch® BOR PCB trace routing
- Enable time domain measurements via direct connection to TDR/TDTs
- Enable frequency domain measurements via direct connection to VNAs
Applications
- AI/ML system architectures
- Servers
- Storage
- Networking
- Test and measurement
- Wired communication
- Wireless communications
Ordering Information
Please see drawing REF-224261-X.XX-XX for more detail.
Contact KitsAndBoards@Samtec.com for additional ordering information.
