Precision & Standard RF Solutions
Samtec offers complete RF interconnect solutions supporting traditional sub-6 GHz frequencies to 110 GHz microwave/mmWave frequencies (sub-Terahertz spectrum). Products include end-to-end RF cable assemblies, board connectors, cable connectors, adaptors and Samtec Original RF Solutions.
Cables
Phase & amplitude stable cables
Microwave assemblies to 110 GHz
RG cable solutions (RG316, RG174, RG178, etc.)
Connectors
Compression mount for test & measurement applications
Board-to-board & cable-to-board
Precision in-series & between-series adaptors
Original
Solutions
Unique solutions for common challenges
Ganged, multi-port solutions
Innovative interfaces
Technical
Support
Industry leading expertise
Full system optimization
Customization & quick-turn modifications
High-Quality Performance Products
Our goal is to blend industry-leading system-level signal integrity expertise with high-quality RF products that meet mechanical, precision and performance expectations every time.
RF Cable Assemblies

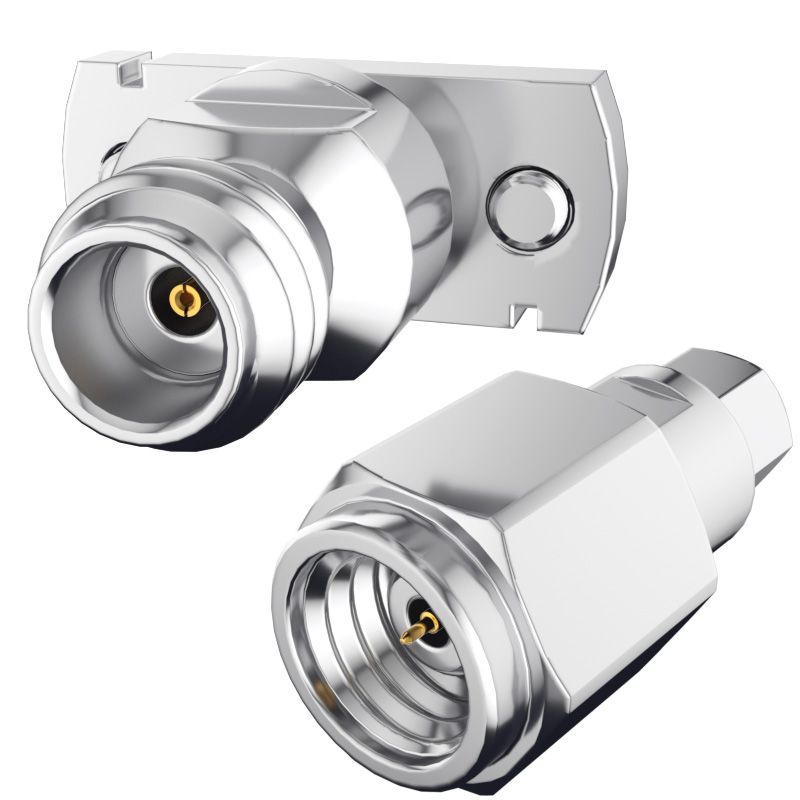

Samtec offers a wide range of RF cable assemblies available with low-loss microwave / millimeter wave cable from .047 to .277, RG type cable (316, 174, 178, 58, 179, 6), 12G-SDI Belden cables, high-density ganged and Samtec-optimized varieties. Interface types include 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMA, SMPM, SMP, MCX, MMCX, BNC, High-Density BNC, MHF U.FL/W.FL, and more.
Nitrowave™
50 Ohm Microwave Cables
High-frequency 18 to 110 GHz cable assemblies with low loss and semi-flexible microwave/millimeter wave cable from .047 to .277, high-density ganged and Samtec-optimized varieties with mix-and-match end options.
Low Frequency RF Cables
Standard off-the-shelf, traditional sub-6 GHz frequency cable assemblies with RG type cable (316, 174, 178, 58, 179, 6), 0.81 and 1.13 mm Micro High Frequency, 12G-SDI and Samtec optimized varieties with mix-and-match standard 50 and 75 ohm end options.
Bulls Eye®
Magnum RF®
Ganged, multi-port RF blocks and cable assemblies for millimeter wave applications. Ideal when space is limited and a high operating frequency is required.
Flexible Waveguide
Samtec’s new, high-frequency micro waveguide technology supports the demands of next generation millimeter wave systems. It uses a cable design allowing flexibility and a reduced size, yet also maintains loss performance similar to that of a traditional waveguide.
Ganged Micro Scale
Samtec's ganged micro-miniature high-performance RF jacks, plugs, and cables are on a 5.00 mm pitch and available as board-to-board or cable-to-board systems.
Shielded Twisted Pair Cable System
High-speed shielded twisted pair cable assembly for 100 ohm applications.
IsoRate®
IsoRate® 50 ohm high-isolation RF connectors and cables offer substantial savings over traditional RF connectors at approximately half the cost.
RF Connectors
RF connectors are available for cable-to-board or board-to-board, ganged and blind-mate applications. Interface types include 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, 3.50 mm, SSMA, SMA, SMPM, SMP, TNCA, N Type, MCX, MMCX, SMB, TNC, BNC, High-Density BNC, in-series or between-series adaptors, and many more.
SMPM Precision RF, 50 Ohm
High-frequency Precision RF interconnects to 65 GHz; single-port SMPM or multi-port ganged Magnum RF® solutions.
DIN 1.0/2.3 75 Ohm
75 ohm DIN 1.0/2.3 RF connectors have push-pull coupling and are designed for high-density applications.
HD-BNC 75 Ohm
High-Density BNC RF connectors, 75 Ohm with 4x the density of standard BNC solutions.
MCX 50 & 75 Ohm
Mini coax interconnects featuring a space-saving design which is approximately 30 percent smaller than SMBs.
SMB 50 & 75 Ohm
Subminiature interconnects featuring snap-on coupling and a space-saving alternative to SMAs.
In-Series Adaptors, Precision RF, 50 Ohm
High-frequency precision RF in-series adaptors for SMPM, 1.85 mm, 2.40 mm or 2.92 mm interconnects.
Between-Series Adaptors, Precision RF, 50 Ohm
High-frequency Precision RF between-series adaptors for 1.00 mm to 1.85 mm or SMPM to 2.92 mm connections.
Magnum RF®
Ganged, multi-port RF blocks and cable assemblies for millimeter wave applications. Ideal when space is limited and a high operating frequency is required.
Flexible Waveguide
Samtec’s new, high-frequency micro waveguide technology supports the demands of next generation millimeter wave systems. It uses a cable design allowing flexibility and a reduced size, yet also maintains loss performance similar to that of a traditional waveguide.
Ganged Micro Scale
Samtec's ganged micro-miniature high-performance RF jacks, plugs, and cables are on a 5.00 mm pitch and available as board-to-board or cable-to-board systems.
Shielded Twisted Pair Cable System
High-speed shielded twisted pair cable assembly for 100 ohm applications.
IsoRate®
IsoRate® 50 ohm high-isolation RF connectors and cables offer substantial savings over traditional RF connectors at approximately half the cost.
Rugged, Blind Mate Module Solutions to 110 GHz
Highly configurable, high-frequency RF ganged solution with blind mate module using size 20 or size 16 contacts, .047" cable assembly, or MT ferrule slot in a space saving, multi-port block.
RF Original Solutions
High-frequency and low-frequency RF products that are unique to Samtec. This includes Bulls Eye® for test and measurement, Magnum RF® multi-port blocks and cable assemblies, Flexible Waveguide for E-band, Ganged and Micro-Mini Systems, 100 Ohm Shielded Twisted Pair Assembly, IsoRate® high-isolation RF, and 75 Ohm or high-vibration MMCX solutions.
Bulls Eye®
Magnum RF®
Ganged, multi-port RF blocks and cable assemblies for millimeter wave applications. Ideal when space is limited and a high operating frequency is required.
Flexible Waveguide Original Solutions
Samtec’s new, high-frequency micro waveguide technology supports the demands of next generation millimeter wave systems. It uses a cable design allowing flexibility and a reduced size, yet also maintains loss performance similar to that of a traditional waveguide.
URSA® I/O
URSA® I/O features a hyperboloid-type contact for extreme reliability and high mating cycles in ultra rugged applications with EMI protection.
Ganged Micro Scale
Samtec's ganged micro-miniature high-performance RF jacks, plugs, and cables are on a 5.00 mm pitch and available as board-to-board or cable-to-board systems.
Shielded Twisted Pair Cable System
High-speed shielded twisted pair cable assembly for 100 ohm applications.
IsoRate®
IsoRate® 50 ohm high-isolation RF connectors and cables offer substantial savings over traditional RF connectors at approximately half the cost.
Rugged, Blind Mate Module Solutions to 110 GHz
Highly configurable, high-frequency RF ganged solution with blind mate module using size 20 or size 16 contacts, .047" cable assembly, or MT ferrule slot in a space saving, multi-port block.
Precision RF Solutions
The Precision RF product line includes 18 to 110 GHz high-frequency, Precision RF solutions for microwave and millimeter wave applications, including cable assemblies, cable connectors and board level interconnects.
Samtec designs and manufactures our own high-frequency cables and connectors. In doing so, we're able to ensure the highest quality products that provide precise, repeatable electrical and mechanical results every time.
Mix & Match Solutions
Samtec offers a variety of end options for each product series; this blends application-specific customization with the simplicity and lead-time efficiencies of an off-the-shelf assembly.
RF Design Experts & Technical Support
Samtec's Signal Integrity / RF Design & Simulation Engineers provide personal support for solving complex system challenges. In addition, a variety of resources are available online which help answer questions specific to microwave / millimeter wave system design.
