High-Performance RF Microwave Cable Assemblies

Phase and amplitude stable high-performance microwave cable assemblies designed to support extended frequency ranges for emerging applications.

Nitro Wave Logo
110ghz DCTO

NITROWAVE™

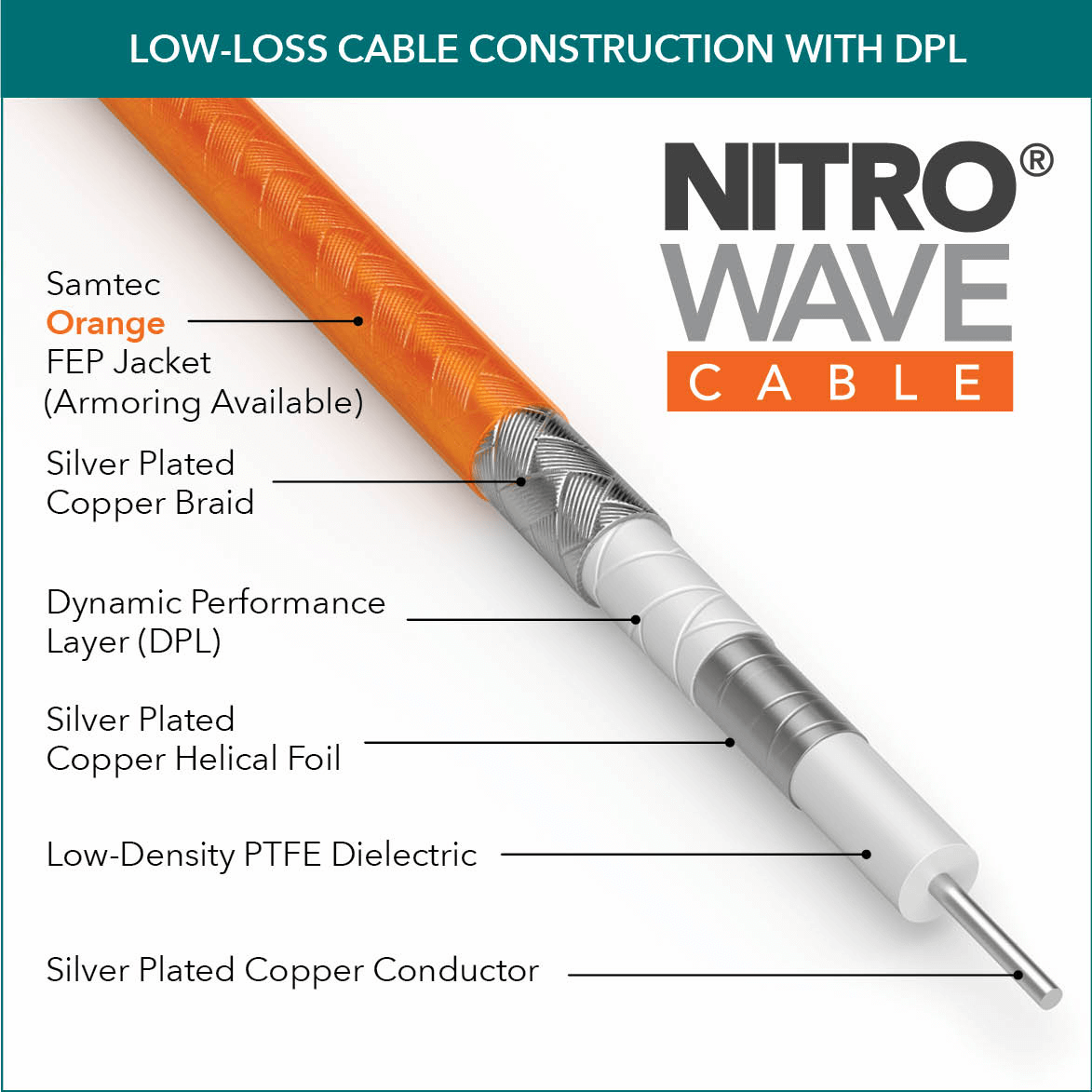

Low-loss Cable Construction

Samtec's next generation of RF coaxial cable offers improved stability with flexure. The coaxial structure—with an outer jacket colored in distinctive Samtec orange—is designed to meet increased demands placed on the aerospace, defense, datacom, computer/semiconductor and instrumentation markets. Performance is optimized at frequencies that go beyond traditional industry targets to support emerging applications.

High-Performance Microwave Cable Assemblies

  • Nitrowave™ cable technology in distinctive Samtec orange

  • Phase and amplitude stable with flexure

  • Consistent contact resistance between layers

  • Lower density dielectric minimizes loss

  • State-of-the-art shielding techniques and interlayer

  • Silver plating enhancements mitigate corrosion potential

  • Electrical performance optimized at next gen frequencies (GHz): 18, 32, 43.5, 71, 95, 110

  • Designed to meet increased demands placed on aerospace, defense, datacom, computer/semiconductor and instrumentation markets

  • Mechanical and environmental robustness

  • Armored versions for crush, torque and pull resistance

  • Phase vs. Bending = < 0.2° x F (GHz)

  • VSWR = 1.4:1 @ 43.5 GHz (LL043 Series)

Features

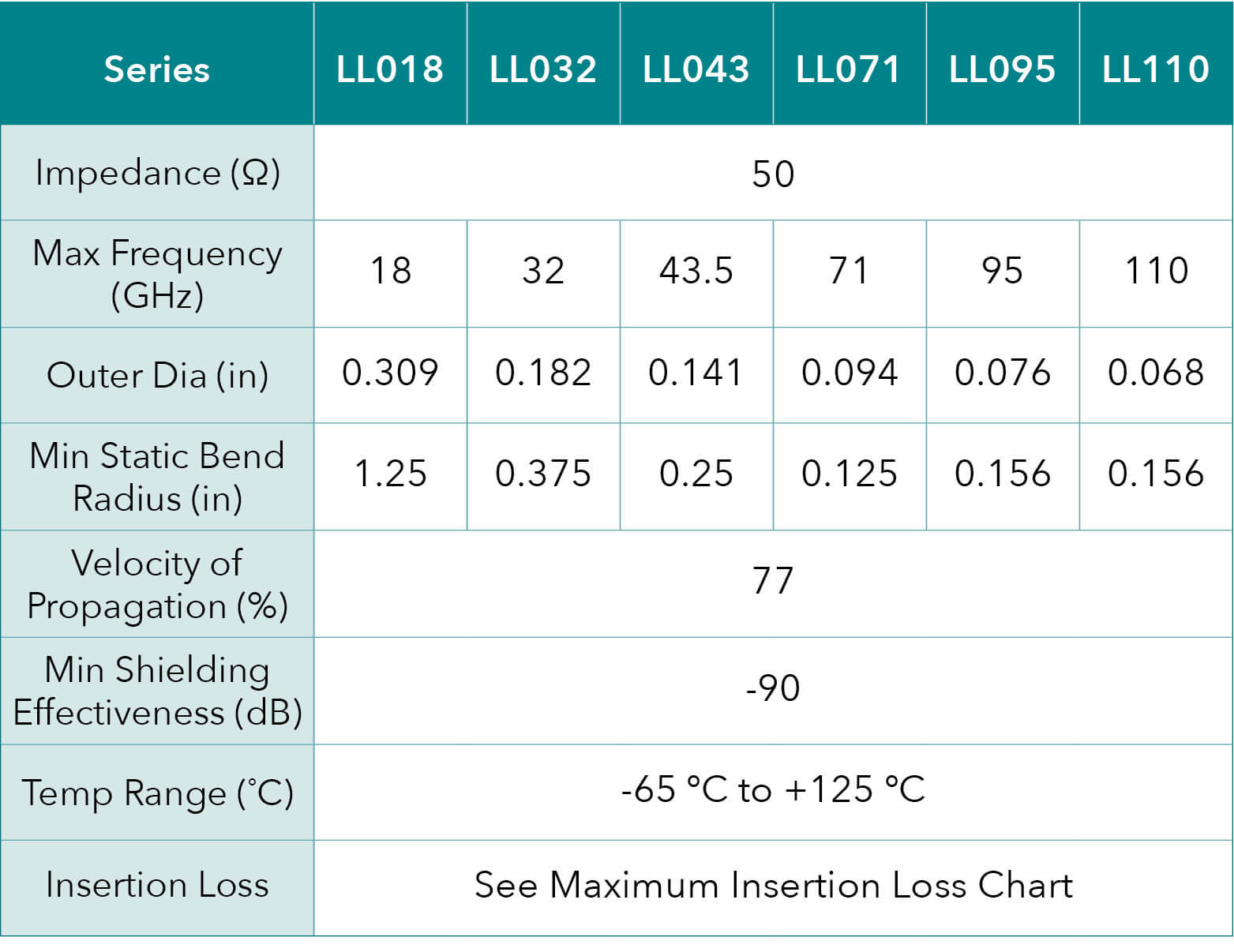

Microwave series specs chart

Interface options include 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMPM, SMP, SMA, N Type, TNCA

Microwave Cable Engineering Manager Quote

Downloads & Resources

Literature

Samtec Nitrowave™ Cable Stability<br>Data eBrochure

Samtec Nitrowave™ Cable Stability
Data eBrochure

Download PDF
Samtec Nitrowave™ RF Orange<br/>Cable eBrochure

Samtec Nitrowave™ RF Orange
Cable eBrochure

Download PDF
Precision RF Microwave/Millimeter Wave Guide

Precision RF Microwave/Millimeter Wave Guide

Download PDF

Products

LL110

110 GHz, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 110 GHz

  • LL110 end 2 options: 1.00 mm

  • Optimized coaxial structure using Nitrowave™ cable technology

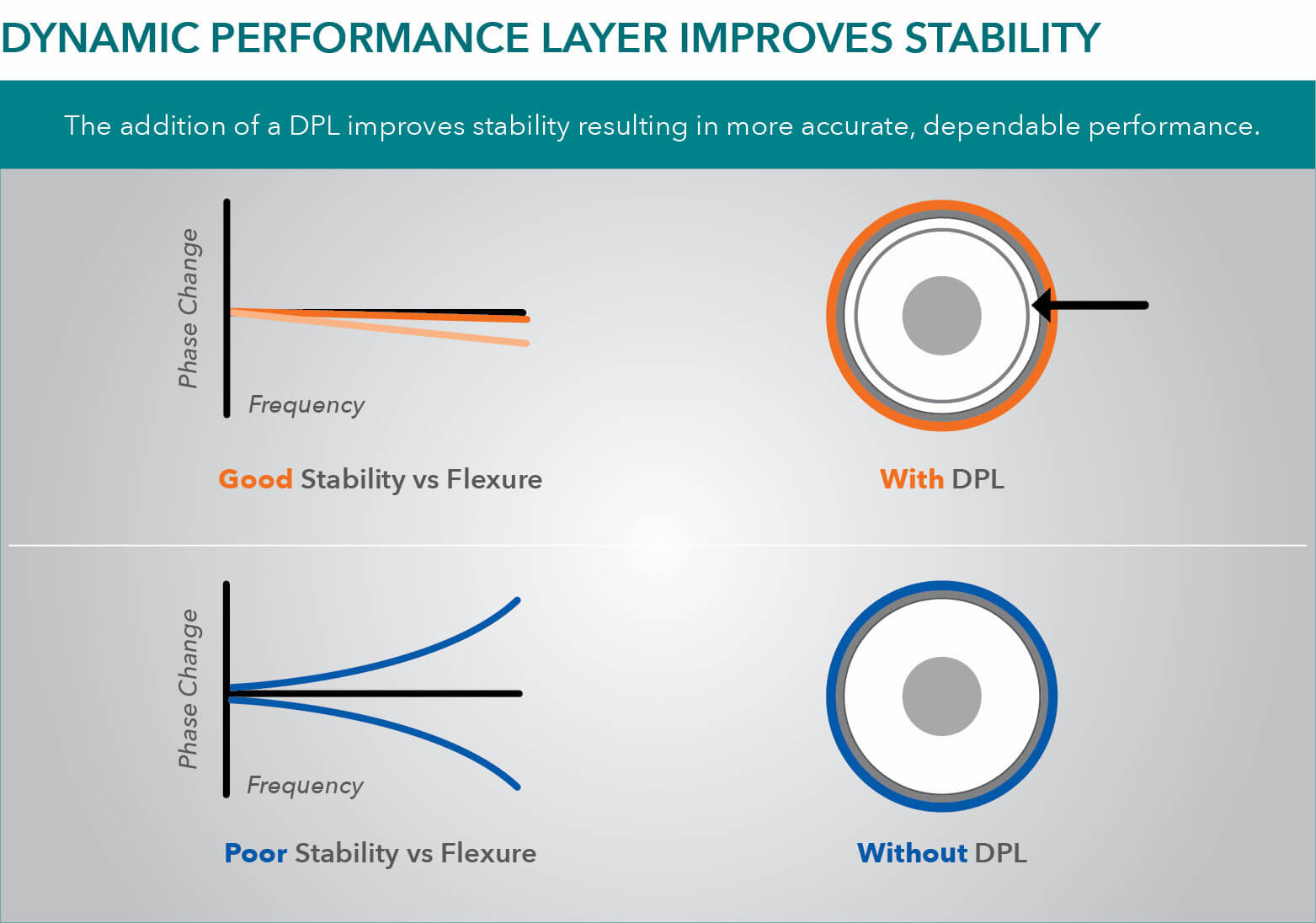

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

LL110 Nitrowave™ cable assembly in distinct Samtec orange

LL095

95 GHZ, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 95 GHz

  • LL095 end 2 options: 1.00 mm

  • Optimized coaxial structure using Nitrowave™ cable technology

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

Nitrowave™ High-Performance Microwave Cable Assembly

LL071

71 GHZ, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 71 GHz

  • LL071 end 2 options: 1.85 mm and 2.92 mm

  • Optimized coaxial structure using Nitrowave™ cable technology

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

Nitrowave™ High-Performance Microwave Cable Assembly

LL043

43.5 GHz, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 43.5 GHz

  • LL043 end 2 options: 2.40 mm, 2.92 mm and SMA

  • Optimized coaxial structure using Nitrowave™ cable technology

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

LL043 Nitrowave™ cable assembly in distinct Samtec orange

LL032

32 GHz, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 32 GHz

  • LL032 end 2 options: 2.92 mm

  • Optimized coaxial structure using Nitrowave™ cable technology

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

Nitrowave™ High-Performance Microwave Cable Assembly

LL018

18 GHz, Nitrowave™ High-Performance Microwave Cable Assembly
Features
  • Frequency Range: DC to 18 GHz

  • LL018 end 2 options: SMA

  • Optimized coaxial structure using Nitrowave™ cable technology

  • Dynamic Performance Layer (DPL) improves stability resulting in more accurate, dependable performance

  • Improved process controls

  • Low-loss, high-performance microwave cable assemblies with Samtec orange FEP jacket

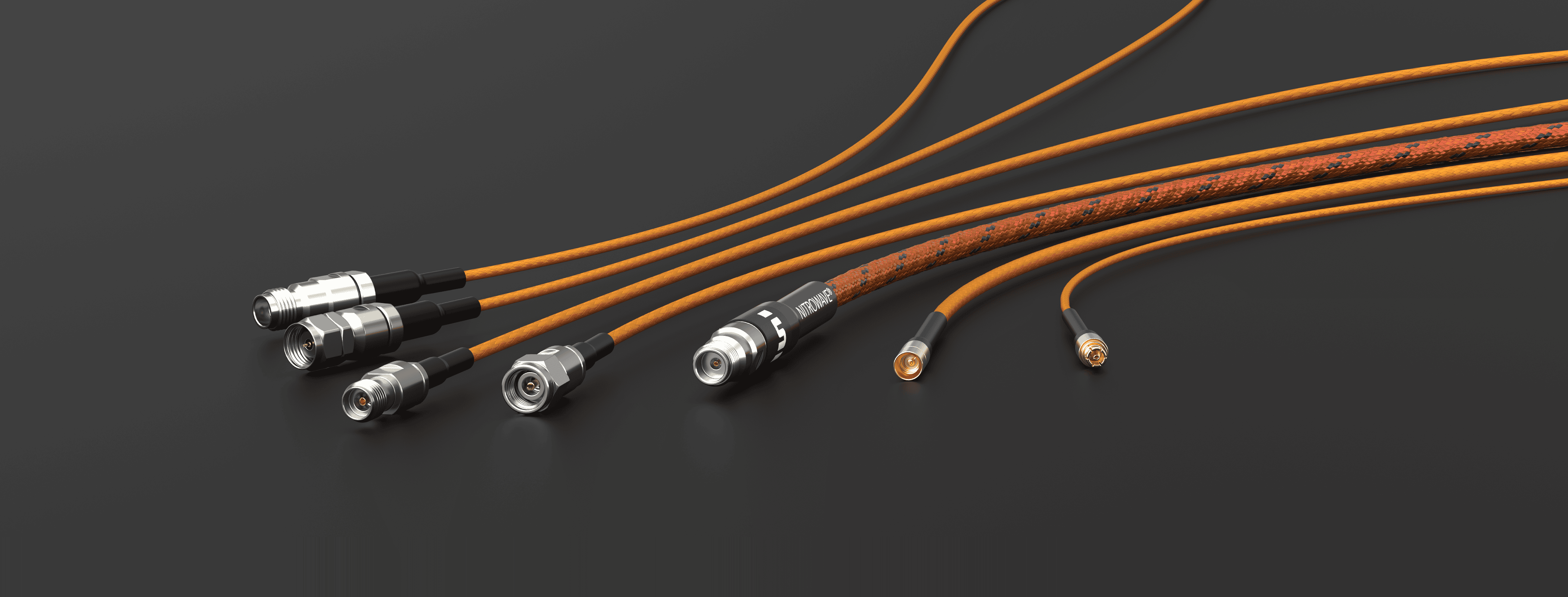

nitrowave high performance rf cable
