Performance to 60 A per power blade
Rugged 10 mm low profile design (right-angle orientation)
3 or 5 signal rows in the same form factor
Available with 0 to 40 signal pins
Up to 20 total DC power blades or 12 total AC power blades
AC-DC power combos and split power options available
Current rating: 60 A max (power blade), 30 A/30 A (split power blade), 3.3 A max (signal pin)
Voltage rating: 300 VAC/424 VDC max (power blade)
Press-fit tails option for ease of board termination (ET60S only)
Modules can be configured to accommodate most any design
Coplanar or perpendicular solutions supporting mid-board or backplane applications
Hot plug option available

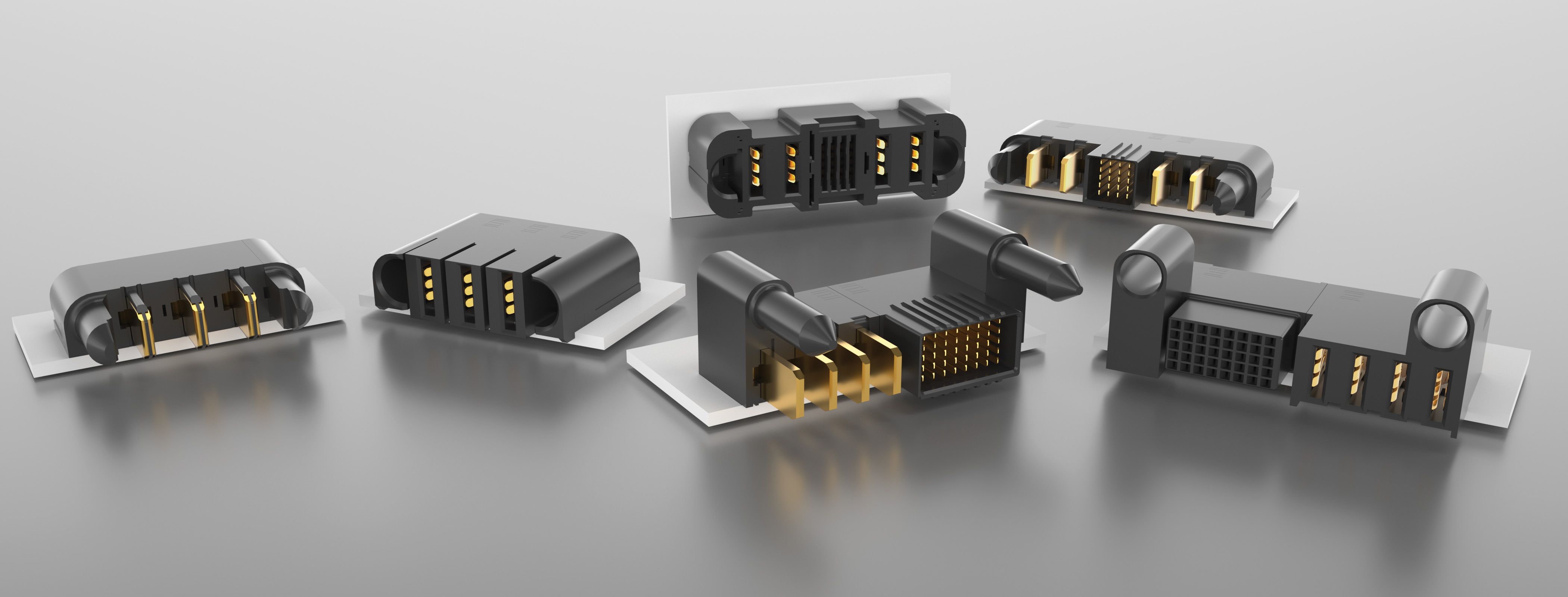

Samtec's EXTreme Ten60Power™ 60 amp power connectors feature a modular high power and signal combo for mid-board or backplane applications. Designed as a high-current and low profile interconnect, EXTreme Ten60Power™ connectors provide maximum current-to-length ratio packaged in a low 10 mm height housing that enhances airflow within the system.
Features
Downloads & Resources
Literature
Technical Documents
Products
ET60S
EXTreme Ten60Power™ 60 Amp Signal/Power Combo
Features
Rugged low profile design
Vertical and right-angle orientations
Mid-board or backplane applications
Current rating: 60 A max (power blade), 30 A/30 A (split power blade), 3.3 A max (signal pin)
Voltage rating: 300 VAC/424 VDC max (power blade)
Up to 20 total DC power blades or 12 total AC power blades
AC-DC power combos and split power options available
0 to 40 total signal pins
3 or 5 signal rows in the same form factor
Optional press fit tails
ET60T
EXTreme Ten60Power™ 60 Amp Signal/Power Combo
Features
10.00 mm low profile design (right-angle)
Mid-board or backplane applications
Current rating: 60 A max (power blade), 30 A/30 A (split power blade), 3.3 A max (signal pin)
Voltage rating: 300 VAC/424 VDC max (power blade)
Up to 20 total DC power blades or 12 total AC power blades
AC-DC power combos and split power options available
0 to 40 total signal pins
3 or 5 signal rows in the same form factor
