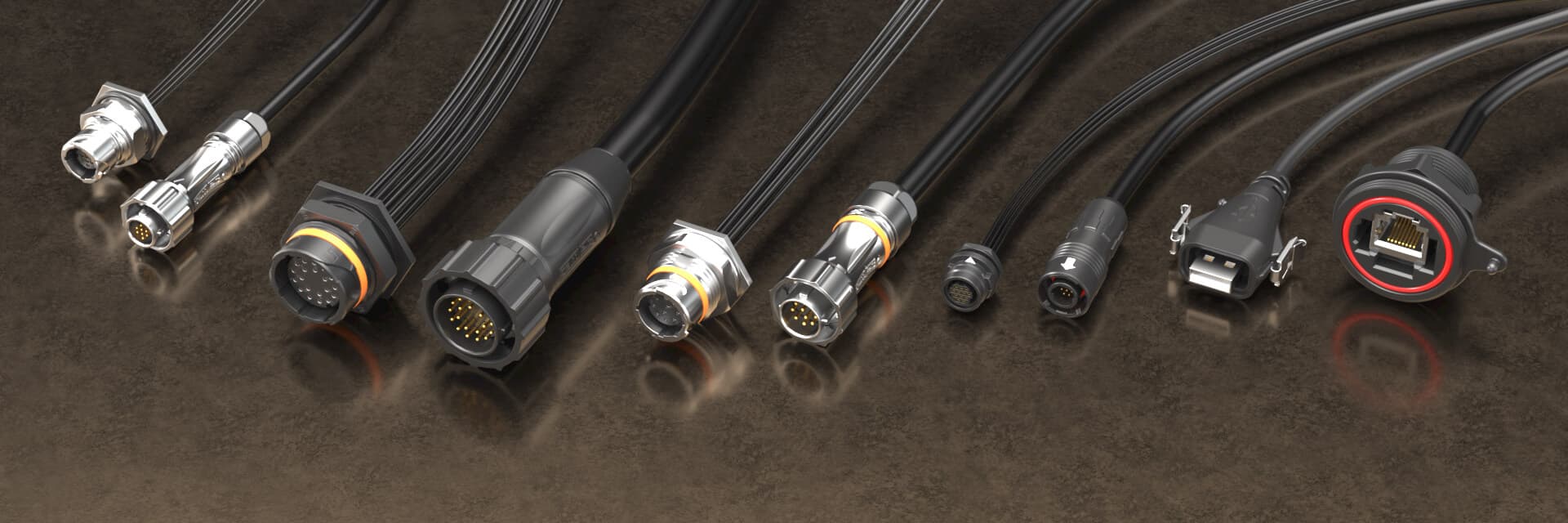

Samtec’s URSA® I/O rugged power system features a micro-hyperboloid contact system with four points of contact for extreme reliability and high mating cycles in cable-to-cable and cable-to-board applications. Additionally, EMI shielding limits signal degradation and optimizes performance.

NovaRay® I/O is available with a rugged 38999 shell in a cable-to-panel design using Flyover® cable technology for 112 Gbps PAM4 performance. ExaMAX® I/O EMI shielded external cable and cage supports 64 Gbps PAM4 performance with up to 72 staggered differential pairs on individual signal wafers for reduced crosstalk. Extreme environment FireFly™ optical transceivers are designed for an extended temperature range from -40 ºC to +85 ºC with an optional parylene conformal coating for exposed military and aerospace applications.

AccliMate™ sealed I/O systems meet IP67/IP68 requirements for dust and water proof sealing, ideal for high reliability in harsh environments. These sealed systems include bayonet circulars in 12 mm, 16 mm or 22 mm shell sizes, and a miniature push-pull system for increased panel density. Sealed rectangulars offer a 25-45% panel area savings, and threaded circulars are available with USB Type A/B/C or Ethernet that meets CAT5e.

Rugged I/O Systems Brochure

Rugged I/O Systems eBrochure

Download PDF

URSA® I/O

URSA® I/O Ultra Rugged Cable System

URSA® I/O features Hyper Claw™ hyperboloid-type contacts for extreme reliability and high mating cycles in ultra rugged applications with EMI protection.

Features

  • Four points of contact for an extremely reliable connection

  • Hyper Claw™ hyperboloid-type contact for extreme high mating cycles

  • In Development: Variety of contacts available in the rugged URSA® I/O housing - micro-miniature/push-on SMPM style, high-performance AcceleRate®, power, and combinations in 1 to 5 banks

  • Current rating: 3.8 A max

  • Voltage rating: 200 VAC/282 VDC max

  • Micro 1.00 mm pitch in double row space saving design

  • Extreme density with up to 1,450 total I/Os in a 1RU panel (29 cables at 50 total I/Os each)

  • Cable-to-cable and cable-to-board solutions

  • EMI shielding to limit signal degradation and optimize performance

Products
Ursa I/O

NovaRay® I/O Panel Mount Cable System

NovaRay® I/O 128 Gbps PAM4 Panel Mount Cable System

NovaRay® I/O uses Flyover® cable technology to route up to 4,096 Gbps PAM4 aggregate data from the IC package to the panel and beyond, and is available in a rugged 38999 shell.

Features

  • Highest aggregate data rate on the market - 4,096 Gbps PAM4

  • 128 Gbps PAM4 per channel

  • PCIe® 7.0 capable

  • 16 & 32 diff pair configurations; accommodates PCIe® x4 or x8 plus sidebands

  • Cable-to-cable bulkhead or threaded 38999 panel connection using Flyover® cable technology

  • Rugged 38999 shell is salt fog resistant to 48 hours with an IP67 sealed option (NVA3E/NVA3P)

  • External Cable: 28 or 34 AWG ultra low skew twinax

  • Internal Cable: 34 AWG ultra low skew twinax or Thinax™

  • Single-ended ThinSE™ coax options also available

  • Full external EMI shielding

  • Multiple end 2 high-speed connector options available for your ASIC-adjacent Flyover® interconnect

Products
NovaRay I/O Panel Mount Cable System

ExaMAX® I/O

ExaMAX® I/O Shielded, High-Density Cable System

Fully shielded, EMI protected I/O cable system using proven ExaMAX® technology with two reliable points of contact for 64 Gbps PAM4 (32 Gbps NRZ) performance in a cable-to-panel configuration.

Features

  • Fully shielded external cable and cage for EMI protection

  • Enables 64 Gbps PAM4 (32 Gbps NRZ) electrical performance on 2.00 mm column pitch

  • PCIe® 6.0/CXL® 3.2 capable

  • 24 to 48 pairs (4 and 6 pairs; 6 and 8 columns)

  • Single port cage designed for use with ExaMAX® right-angle board connector (EBTM-RA)

  • Rugged pull latch for mating/unmating

  • 30 and 34 AWG Eye Speed® ultra low skew twinax cable

  • Individual signal wafers with staggered differential pair design

  • One-piece embossed ground structure on each signal wafer to reduce crosstalk

  • Roadmap: cable-to-cable bulkhead panel connection for increased performance to 112 Gbps PAM4

Products
Examax I/O Cable

FireFly™ Optical Transceivers

FireFly™ Optical Transceivers

Samtec's FireFly™ Micro Flyover System™ embedded and rugged optical transceivers take data connection "off board" for up to 28 Gbps per lane with a path to 112 Gbps PAM4 via optical cable at greater distances, or copper for cost optimization.

Features

  • High-speed performance to 28 Gbps per lane

  • Solutions for extended temperature range from -40 ºC to +85 ºC

  • Extreme environment solutions with optional parylene conformal coating for exposed military and aerospace applications

  • x4 and x12 designs

  • Interchangeability of copper and optical

  • Variety of integral heat sink and End 2 options

  • Micro rugged two-piece connector

Products
Firefly Active Optical Transceiver

AccliMate™ Mini Push-Pull

AccliMate™ Mini Push-Pull Sealed Cables

Our AccliMate™ mini push pull sealed cables are tested to IP67 for dust and water applications. They feature a lightweight plastic body and use rugged push-pull latching with visual alignment indicators.

Features

  • Lightweight plastic system

  • Rugged push-pull latching

  • Intermateable with Hirose HR30

  • Polarizing keys

  • Visual alignment indicators

  • Cable-to-cable or cable-to-panel solutions

Products
AccliMate Mini Push-Pull

AccliMate™ IP68 Bayonet Sealed Circular Cables

AccliMate™ IP68 Bayonet Sealed Circular Cables

Our AccliMate™ bayonet sealed circular cables are tested to IP68 for dust and water applications.

Features

  • Three standard shell sizes: 12 mm, 16 mm and 22 mm

  • Metal, plastic or field termination housings

  • Signal, power and combinations available

  • Easily build a standard or customized assembly online

Products
AccliMate IP68 Bayonet Sealed Circular Cables

AccliMate™ Sealed Rectangulars

IP67 & IP68 Sealed Panel Mount Connector for Ethernet & USB

Our AccliMate™ IP67 and IP68 sealed panel mount connector features a spacing saving rectangular design, tested to IP68 for dust and water.

Features

  • Space saving rectangular design

  • Maximum density for low profile 1U sealed applications

  • Ethernet and USB signal systems

  • Easily build a standard or customized assembly online

Products
AccliMate Sealed Rectangulars

AccliMate™ Sealed Threaded Circulars

AccliMate™ IP67 and IP68 Sealed Circular Cables, Threaded

Our AccliMate™ sealed circular cables are threaded and tested to IP68 for dust and water applications.

Features

  • Rugged overmold construction

  • Available as Mini USB, USB, and Ethernet systems

  • Ethernet version available for field termination

  • Dust caps available

Products
AccliMate Sealed Threaded Circulars

USB Board Level Interconnects and Cable Assemblies

USB Board Connector, USB Type A, Type B

Samtec’s USB board connector and cable assemblies include standard, rugged, and sealed USB Type A, USB Type B, Type AM, or Mini USB 2.0 interfaces with choice of interface type.

Features

  • USB and Mini USB

  • Various orientations, types, terminations

  • Rugged options available

  • Rugged overmold cables with various end options

  • 2.0 version available

  • High-cycles

Products
USB Board Level Interconnects and Cable Assemblies
