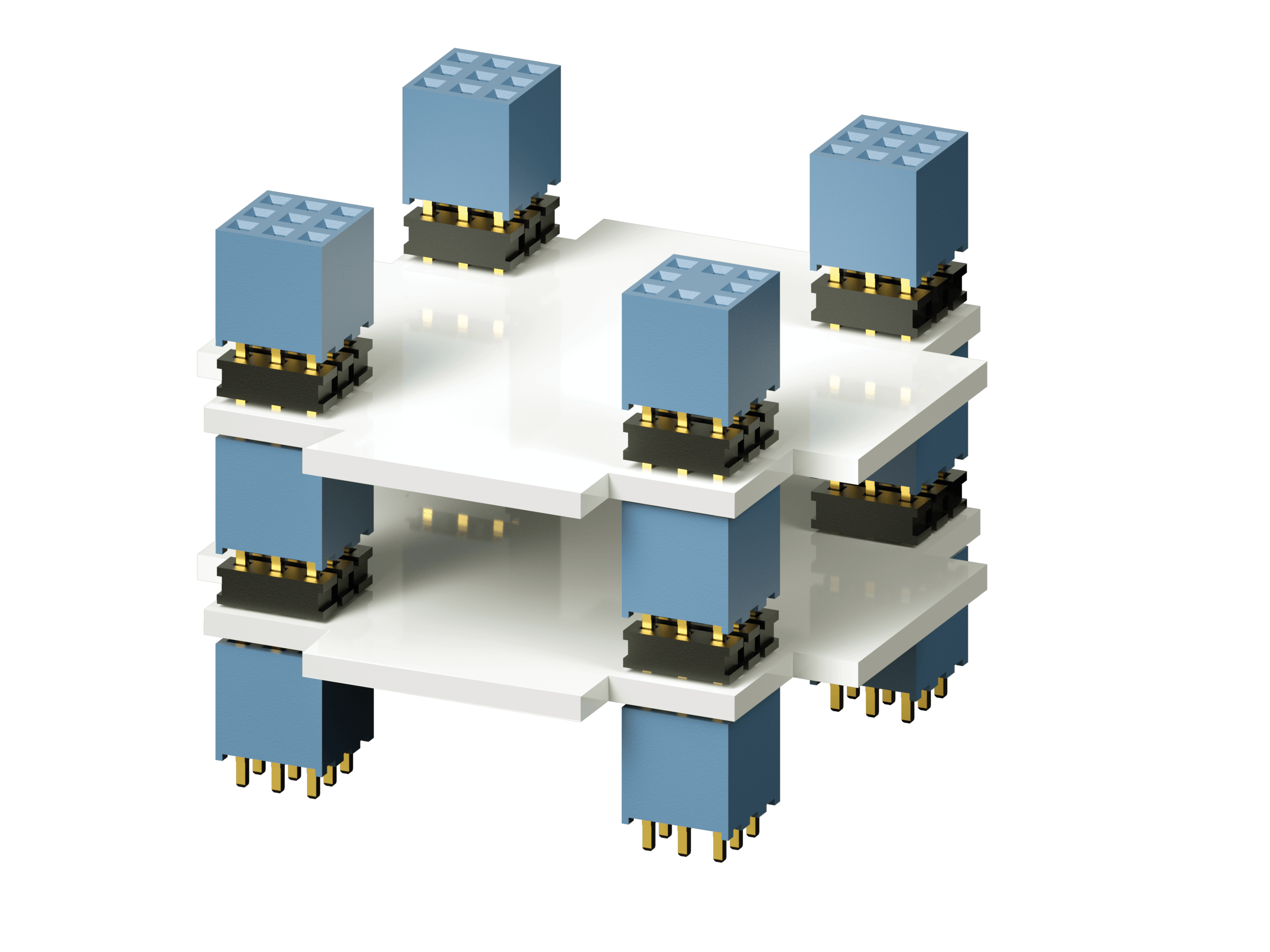

Samtec, in collaboration with drone and robotics manufacturer Kairos Autonomi, developed a durable series of connectors based on a 2 mm grid with a 3x3 pin configuration. These connectors are designed to stack and nest, forming a vertical 9-pin bus. To help indicate that they are U.S.-sourced, the connectors feature a distinctive blue housing.
Overview
Connectors
UxV/35 - FleXYZ™ (ESQT)
Samtec's ESQT interconnect is a flexible-height, through-hole socket strip designed for higher profile board spacing. ESQT uses the high retention, cost-effective Tiger Buy™ contact to provide reliable connections.
| Samtec PN | Connectors | Termination Type | Design Support | ||||
|---|---|---|---|---|---|---|---|
| Contacts | Long Pin | Short Pin | Prints | 3D | PADS | ||
| ASP-232112-06 | 9 | X | Self-Nesting | PDF Print | STEP | PADS File | |
| ASP-232112-07 | 8 | X | Self-Nesting | PDF Print | STEP | PADS File | |
| ASP-241063-01 | 9 | X | Self-Nesting | PDF Print | STEP | PADS File | |
| ASP-241063-02 | 8 | X | Self-Nesting | PDF Print | STEP | PADS File | |
