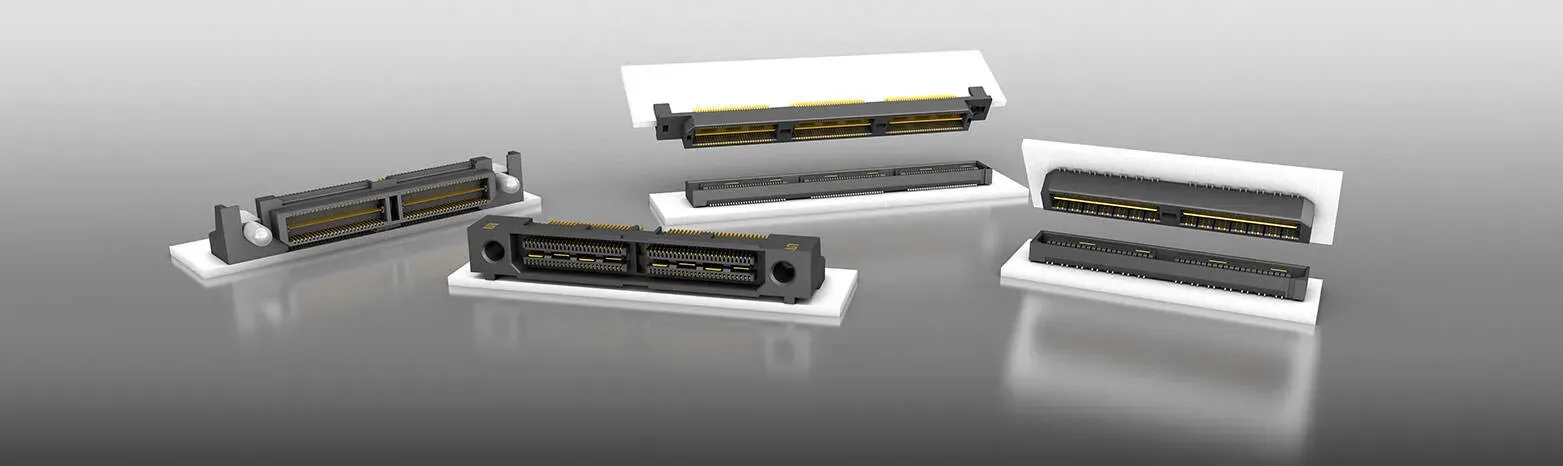

Samtec Q Strip® high-speed ground plane connectors are designed for high-speed board-to-board applications where signal integrity is essential.
The Q Strip® connectors have surface mount signal contacts as well as a surface mount ground plane between the two rows of signals for improved electrical performance. Mated sets of the Q Strip® connectors are available in 8 different stack heights from 5 mm (.197") to 30 mm (1.180"). Options include guide posts for blind mate scenarios as well as alignment pins and locking clips for proper connector placement before reflow.
Performance: Up to 14.0 GHz /28 Gbps
Integral ground/power plane
Connector to connector retention options
Vertical, perpendicular, and coplanar applications
Contacts: Up to 180 I/Os
Stack height: 5 mm–25 mm
Extended Life Product™ (E.L.P.™)
25 Gbps performance
0.50 mm (.0197") pitch
Up to 300 positions
5 mm–30 mm stack heights
Guide post option
0.50 mm (.0197") pitch
Up to 180 positions
Extended Life Product™ (E.L.P.™)
25 Gbps performance
0.50 mm (.0197") pitch
5 mm–30 mm stack heights
Up to 300 positions
Guide post option
Up to 180 positions
0.50 mm (.0197") pitch
0.80 mm (.0315") pitch
Up to 200 positions
5 mm–30 mm stack heights
28 Gbps NRZ performance
Extended Life Product™ (E.L.P.™)
Up to 160 positions
0.80 mm (.0315") pitch
0.80 mm (.0315") pitch
Up to 200 positions
5 mm–30 mm stack heights
28 Gbps NRZ performance
Extended Life Product™ (E.L.P.™)
0.635 mm (.025") pitch
Up to 250 positions
5 mm–16 mm stack heights
25 Gbps performance
Extended Life Product™ (E.L.P.™)
0.635 mm (.025") pitch
Up to 200 positions
Guide post option
5 mm–16 mm stack heights
Extended Life Product™ (E.L.P.™)
0.635 mm (.025") pitch
Up to 250 positions
0.635 mm (.025") pitch
Guide post option
Up to 200 positions
Accommodates blind mating in perpendicular applications
Mates with GPPK Series guide post
Use with PCB thickness of .062" (1.60 mm) to .125" (3.18 mm)
Pairs with most high-speed connector strips and arrays
Accommodates blind mating in perpendicular applications
Mates with GPSK guide post socket
Pairs with most high-speed connector strips and arrays
