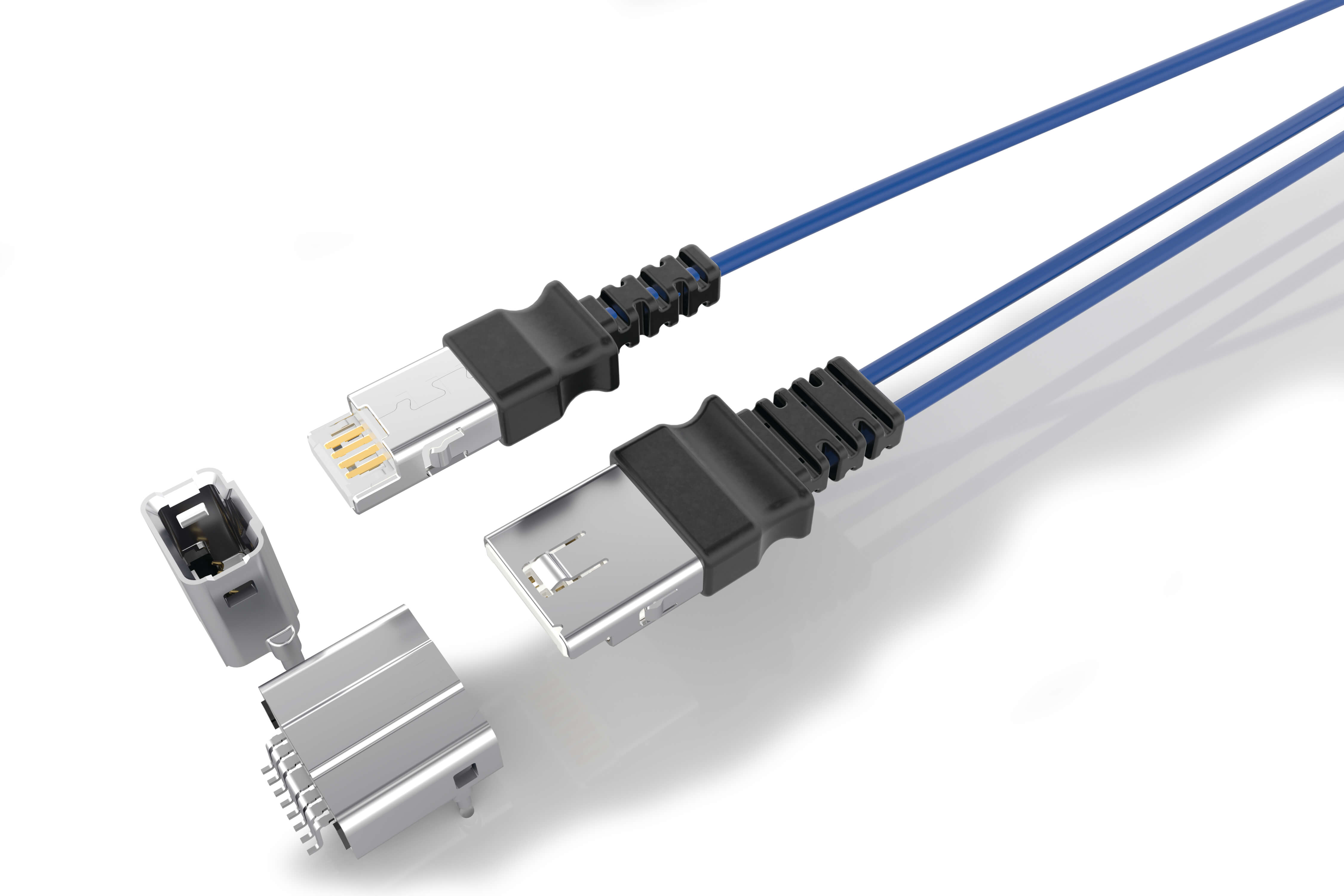

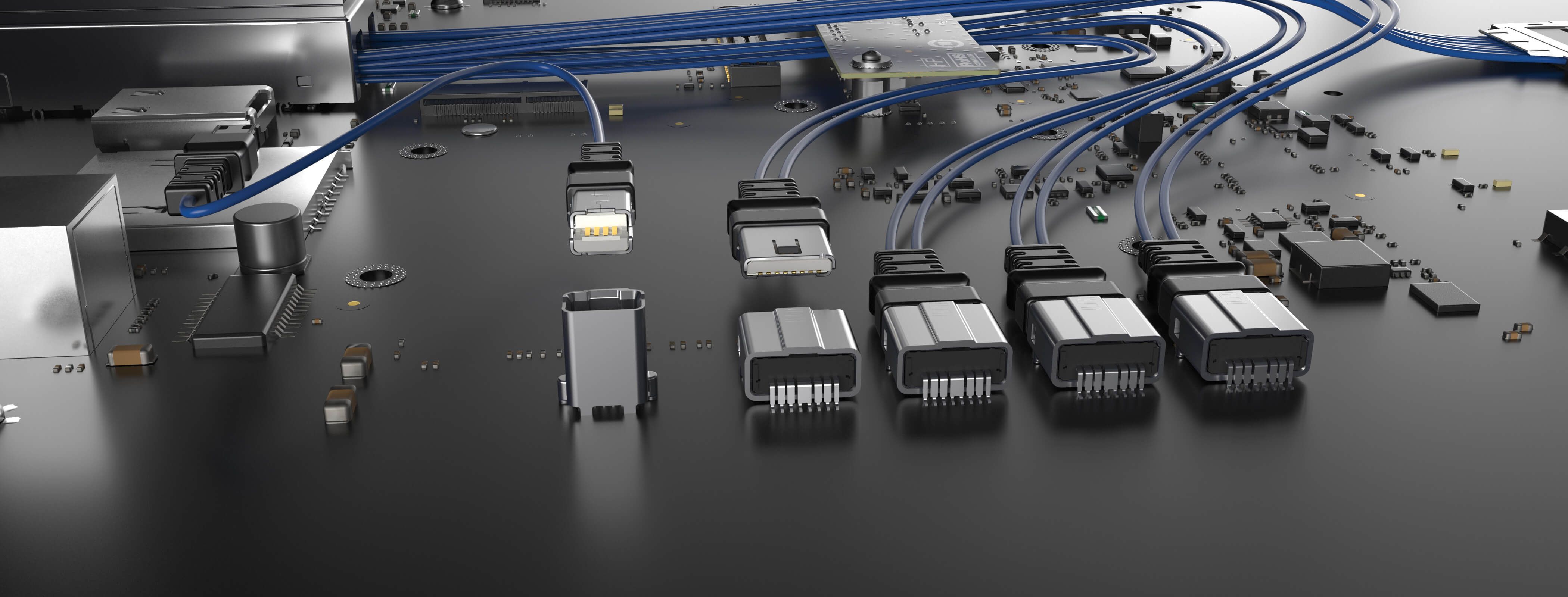

AcceleRate® Mini Flyover® system delivers 112 Gbps PAM4 performance in an incredibly small form factor via Eye Speed Thinax™ ultra low skew twinax cable.
The miniature form factor of AcceleRate® Mini offers space savings and design flexibility without sacrificing performance. Featuring Samtec's proprietary Eye Speed® Thinax™ ultra performance twinax, this taped jacket cable is miniaturized for more dense connectors with 112 Gbps PAM4 performance. Use AcceleRate® Mini on both ends of the assembly, or with other Flyover® End 2 options for increased design flexibility.
112 Gbps PAM4 performance
34 AWG, 92 Ω Eye Speed Thinax™ ultra low skew twinax cable
One or two differential pairs
Vertical and right-angle mating board connector
Design flexibility as an End 2 option for Flyover® assemblies
Friction retention latching for a secure connection
Standard alignment pins
112 Gbps PAM4 performance
34 AWG, 92 Ω Eye Speed Thinax™ ultra low skew twinax cable
One or two differential pairs
Design flexibility as an End 2 option for Flyover® assemblies
Friction retention latching for a secure connection
112 Gbps PAM4 performance
One or two differential pairs
Vertical and right-angle orientations
Friction retention latching for a secure connection
Standard alignment pins
