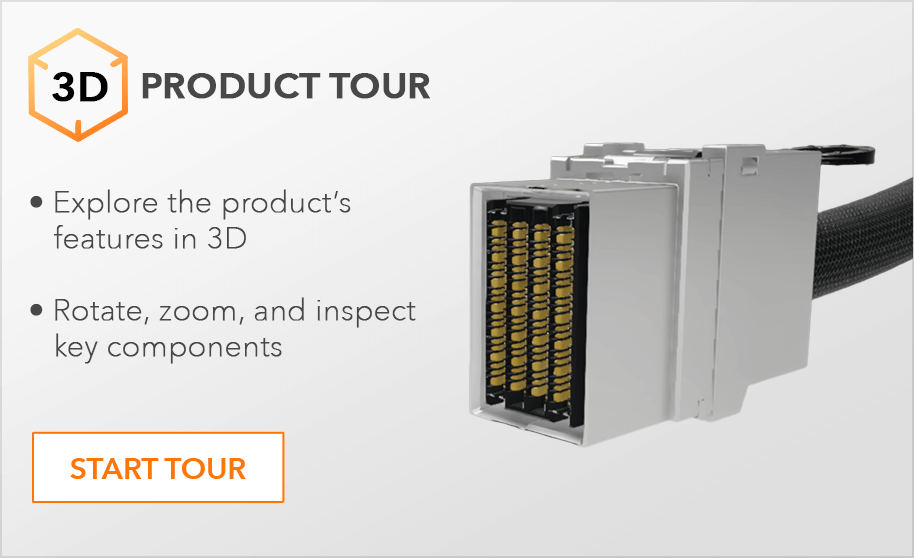

Fully shielded, EMI protected I/O cable system using proven ExaMAX® technology with two reliable points of contact for 64 Gbps PAM4 (32 Gbps NRZ) performance in a cable-to-panel configuration.
Samtec's ExaMAX® I/O external cable and cage system features EMI shielding to help limit signal degradation and optimize performance, supporting 64 Gbps PAM4 (32 Gbps NRZ) applications. The high-density design features up to 72 staggered differential pairs on individual signal wafers, which increases isolation and significantly reduces crosstalk. For additional signaling, one sideband per column is included. Eye Speed® ultra low skew cable technology improves bandwidth and extends signal reach.
Fully shielded external cable and cage for EMI protection
Enables 64 Gbps PAM4 (32 Gbps NRZ) electrical performance on 2.00 mm column pitch
24 to 72 pairs (4 and 6 pairs; 6, 8, 10 and 12 columns)

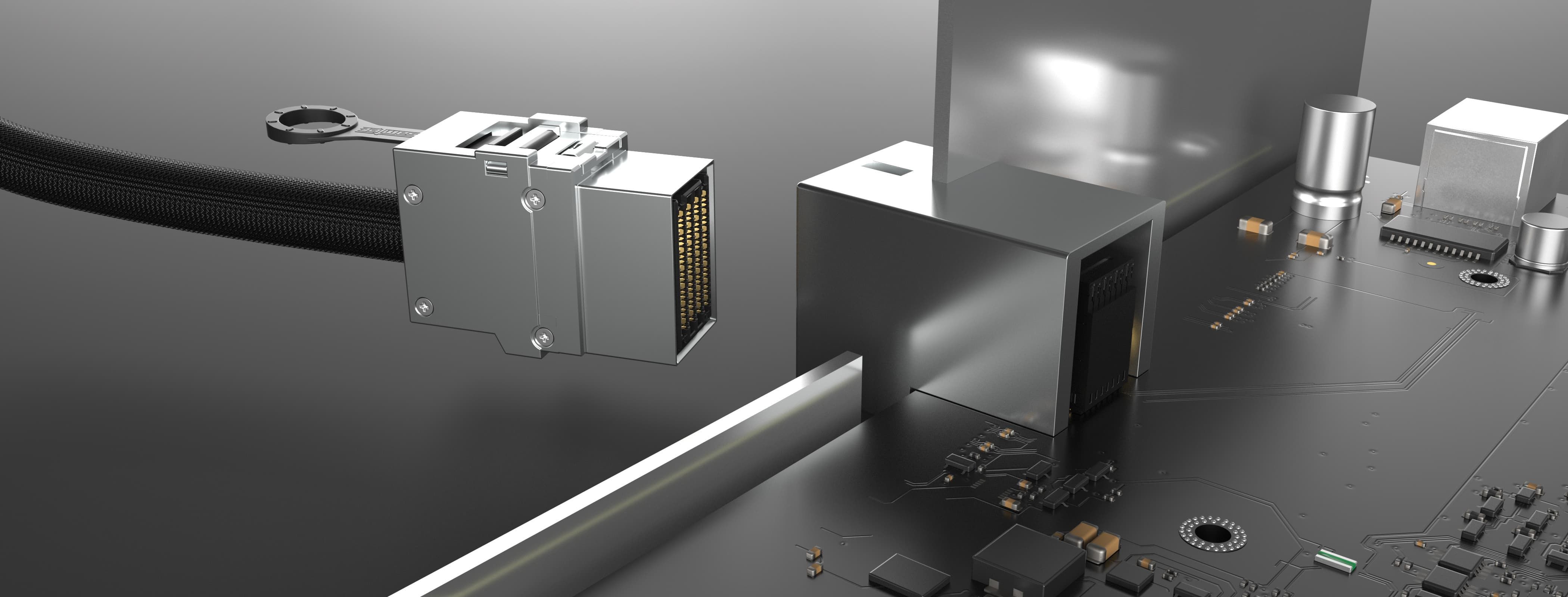

Single port cage designed for use with ExaMAX® right-angle board connector (EBTM-RA)
Rugged pull latch for mating/unmating
30 and 34 AWG Eye Speed® ultra low skew twinax cable
Individual signal wafers with staggered differential pair design
One-piece embossed ground structure on each signal wafer to reduce crosstalk
Roadmap: cable-to-cable bulkhead panel connection for increased performance to 112 Gbps PAM4
Samtec's proprietary co-extruded Eye Speed® twinax cable technology eliminates the performance limitations and inconsistencies of individually extruded dielectric twinax cabling; improving signal integrity, bandwidth and reach for high-performance system architectures.
Fully shielded external cable and cage for EMI protection
Supports 64 Gbps PAM4 (32 Gbps NRZ) applications
Individual signal wafers with staggered differential pair design; 24–72 pairs (board connectors) and 16–96 pairs (cable assemblies)
Rugged pull latch for mating/unmating
30 and 34 AWG Eye Speed® ultra low skew twinax cable
One-piece embossed ground structure on each signal wafer to reduce crosstalk
Fully shielded cage for EMI protection
Single port cage designed for use with ExaMAX® right-angle board connector (EBTM-RA), which supports 64 Gbps PAM4 (32 Gbps NRZ) applications and is PCIe® 6.0/CXL® 3.2 capable
Individual signal wafers with staggered differential pair design; 24–72 pairs (board connectors) and 16–96 pairs (cable assemblies)
One-piece embossed ground structure on each signal wafer to reduce crosstalk
