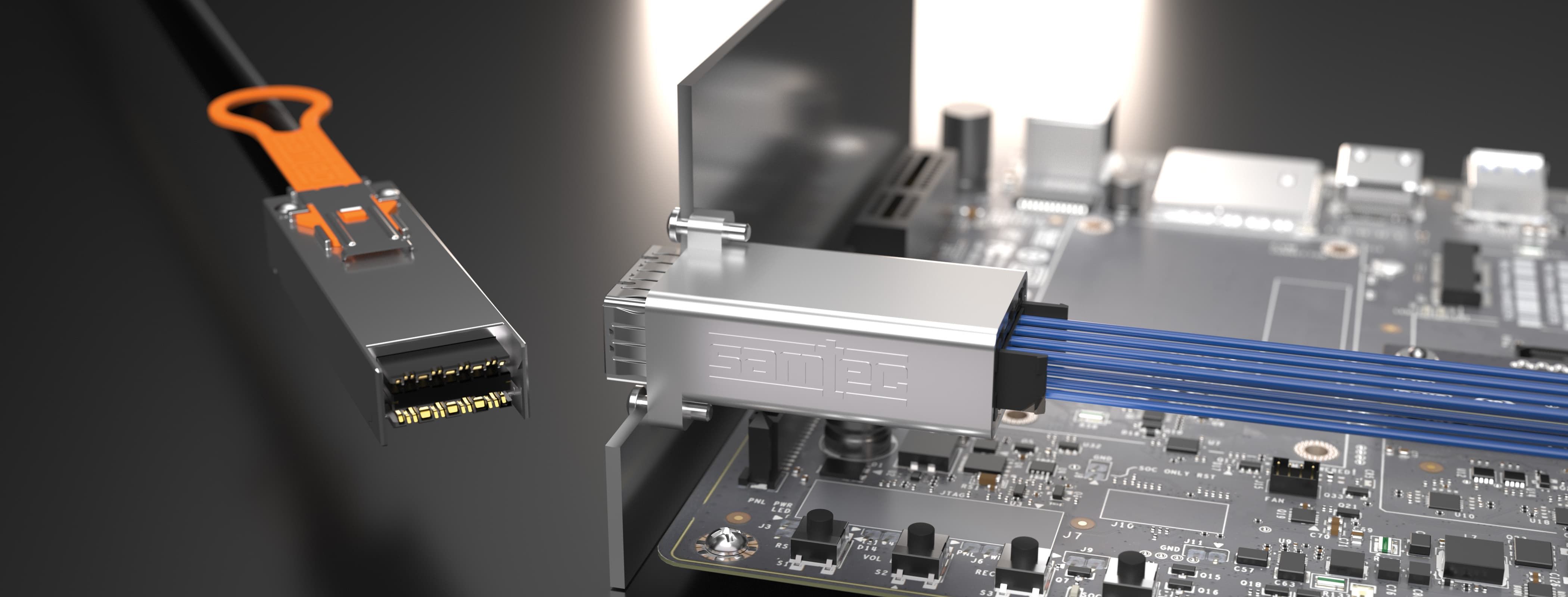

NovaRay® I/O uses Flyover® cable technology to route up to 3,584 Gbps PAM4 aggregate data from the IC package to the panel and beyond.
NovaRay® I/O offers the highest aggregate data rate on the market, 3,584 Gbps PAM4, with a high-density cable-to-cable bulkhead panel connection. Flyover® cable technology routes data above lossy PCB to simplify board layout and extend signal reach, both inside and outside of the box. Passive electric external cables prevent a large thermal load at the panel and require no heat sinks, saving valuable panel space.
Highest aggregate data rate on the market - 3,584 Gbps PAM4
16 & 32 diff pair configurations; accommodates PCIe® x4 or x8 plus sidebands
Cable-to-cable bulkhead panel connection using Flyover® cable technology
External Cable: 28 or 34 AWG twinax
Internal Cable: 34 AWG twinax
Single-Ended coax options also available
Full external EMI shielding
Multiple end 2 high-speed connector options available for your ASIC-adjacent Flyover® interconnect

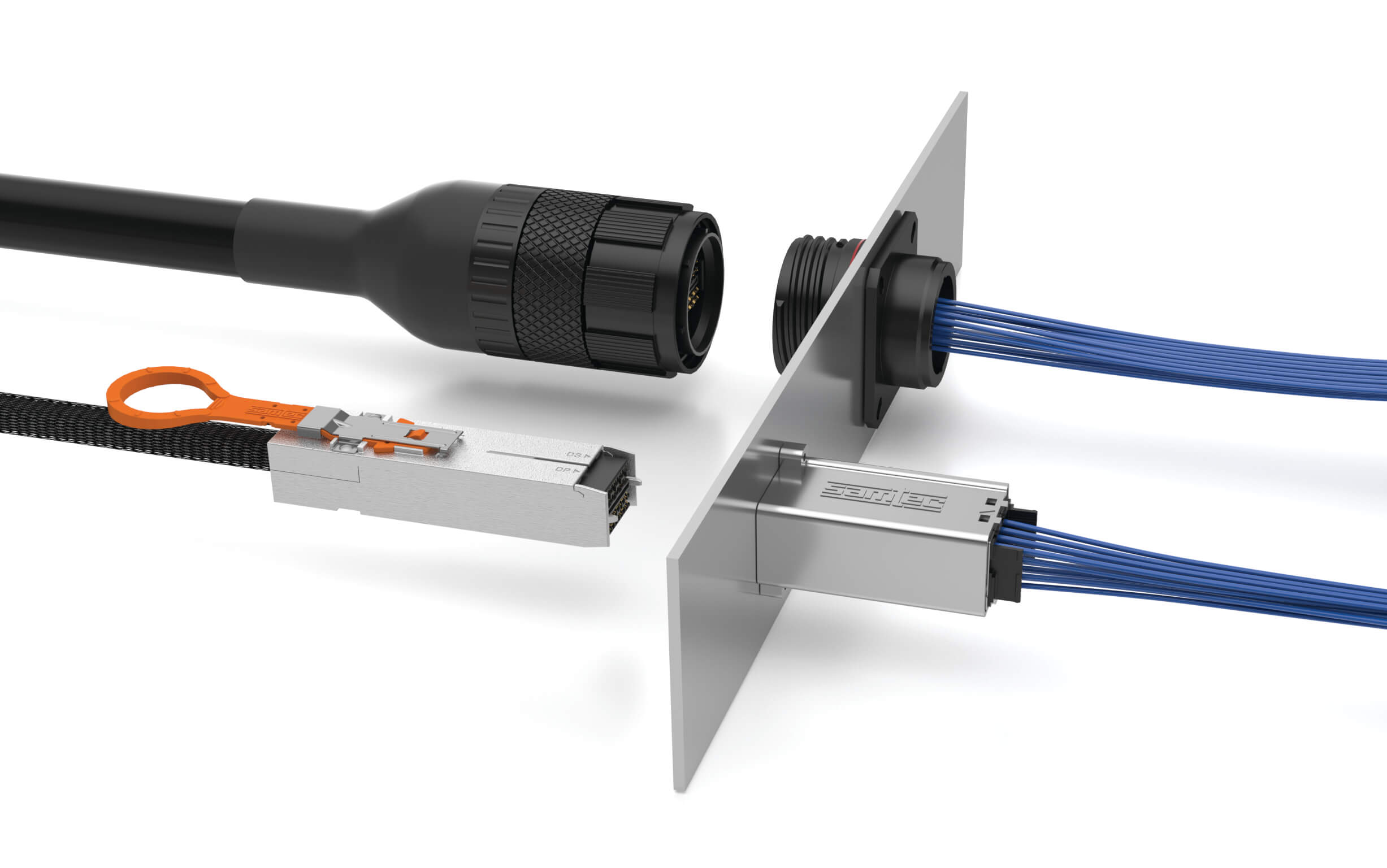

Available in a threaded cable-to-panel design with a rugged 38999 shell for salt fog resistance to 48 hours and an IP67 sealed option (NVA3E/NVA3P)
High-Density, Slim Cable Assembly
High-Density Array Cable Assembly
Low-Profile Cable Assembly
Samtec’s proprietary co-extruded, low loss, twinax cable technology eliminates the performance limitations and inconsistencies of individually extruded dielectric twinax cabling, improving signal integrity, bandwidth and reach.
External, outside the box cable
Cable-to-cable bulkhead panel connection using Flyover® cable technology
Up to 3584 Gbps PAM4 aggregate data rate
112 Gbps PAM4 performance in 16 and 32 pair configurations
PCI Express® 6.0 solution in x4 and x8 pair configurations
28 or 34 AWG twinax cable; 34 AWG coax (single-ended signaling available)
Rugged external shielding for EMI protection
Cable-to-cable bulkhead panel connection using Flyover® cable technology
Up to 3584 Gbps PAM4 aggregate data rate
112 Gbps PAM4 performance in 16 and 32 pair configurations
PCI Express® 6.0 solution in x4 and x8 pair configurations
28 or 34 AWG twinax cable; 34 AWG coax (single-ended signaling available)
Rugged external shielding for EMI protection
Internal, inside the box cable
Spring fingers for EMI panel protection
Available in 1, 2 or 4 port configurations
Designed for use with NVACP panel mount cable assembly
Samtec's NovaRay® I/O high data rate cable system in a rugged 38999 shell
Salt fog resistant to 48 hours
IP67 for dust and waterproof sealing option
High-density 16 pair; 32 on roadmap
Threaded cable-to-panel design using Flyover® cable technology
28 or 34 AWG (external); 34 AWG (internal) ultra low skew twinax
Up to 3,548 Gbps PAM4 aggregate data rate from the IC package to the panel and beyond
Samtec's NovaRay® I/O high data rate cable system in a rugged 38999 shell
Salt fog resistant to 48 hours
IP67 for dust and waterproof sealing option
High-density 16 pair; 32 on roadmap
Threaded cable-to-panel design using Flyover® cable technology
28 or 34 AWG (external); 34 AWG (internal) ultra low skew twinax
Up to 3,548 Gbps PAM4 aggregate data rate from the IC package to the panel and beyond
End 2 options include AcceleRate® and NovaRay® connectors
