224 Gbps PAM4 performance
Up to 2,048 differential pairs in one open rack unit (OU)
Eye Speed® Hyper Low Skew Twinax cable technology supports 224G signaling with an industry leading 1.75 ps/m max intra-pair skew
Improved signal integrity performance, optimal flexibility and increased routability
Roadmap: right-angle board connector for cable-to-board applications
7.2 Tbps aggregate data rate per 64 pairs (8x8) connection

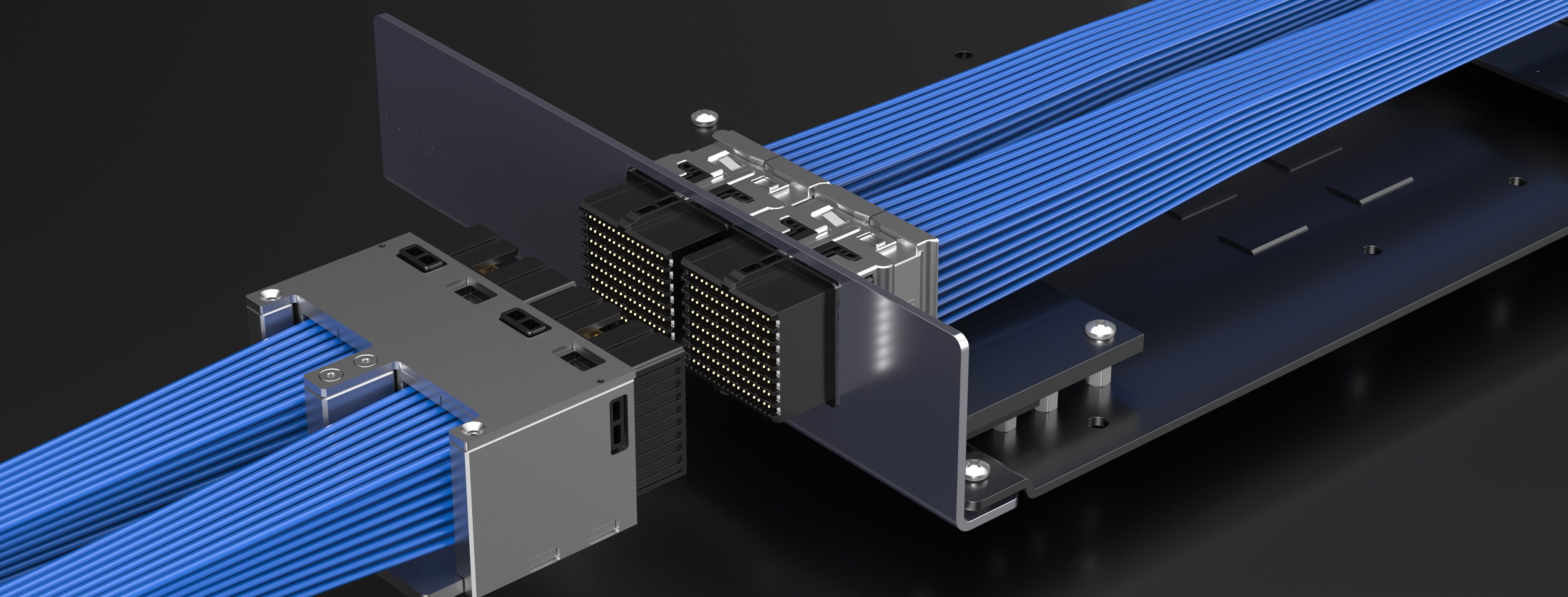

The Si-Fly® HD backplane system offers 224 Gbps PAM4 performance and up to 2,048 differential pairs in one open rack unit. This is enabled by Samtec’s Eye Speed® hyper low skew twinax cable (1.75 ps/m max) designed for improved bandwidth, reach and density.
Features
Products
SBCM
In Development - Si-Fly® HD High-Density Backplane Cable Header
Features
224 Gbps PAM4 performance
Up to 2,048 differential pairs in one open rack unit (OU)
Eye Speed® Hyper Low Skew Twinax cable technology supports 224 Gbps PAM4 signaling (32 AWG)
64 total differential pairs (8 rows x 8 pairs)
2.2 mm x 2.0 mm pitch
1.5 mm contact wipe
SBCF
In Development - Si-Fly® HD High-Density Backplane Cable Socket
Features
224 Gbps PAM4 performance
Up to 2,048 differential pairs in one open rack unit (OU)
Eye Speed® Hyper Low Skew Twinax cable technology supports 224G signaling (28 and 32 AWG)
64 total differential pairs (8 rows x 8 pairs)
2.2 mm x 2.0 mm pitch
1.5 mm contact wipe
Contact Sales
