Traditional URSA® I/O leverages Hyper Claw™ hyperboloid-contact technology to achieve extreme reliability, high mating cycles and a 3.8 A max current rating while EMI shielding reduces outside noise in support of mission-critical rugged applications. With the addition of RF and high-speed differential pair options, the URSA® I/O portfolio also now supports 40 GHz and 64 Gbps PAM4 transmission lines.
Family Overview

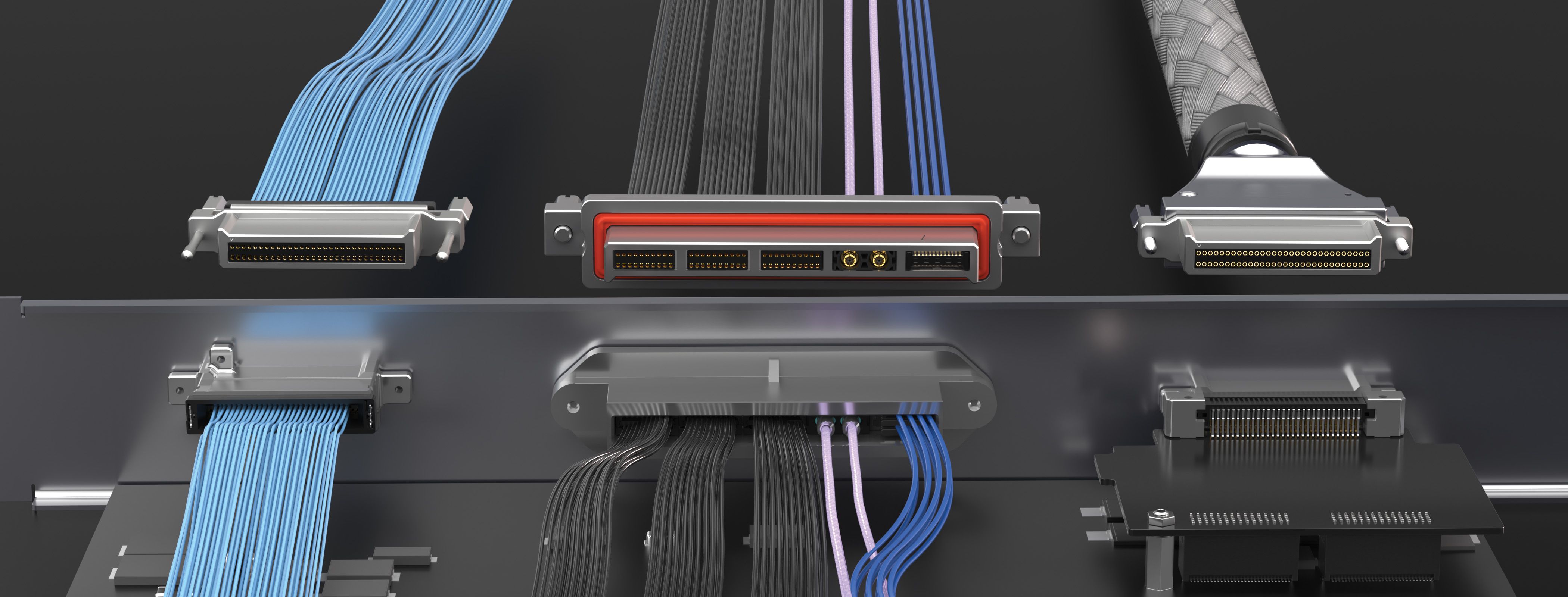

Samtec’s URSA® I/O cable-to-cable and cable-to-board solutions achieve a reliable connection in a small form factor, which allows for extreme density on the panel. Designed for ultra rugged applications, EMI shielding helps to limit signal degradation and optimize performance.
Features
Downloads & Resources
Products
Features the ultra rugged benefits of URSA® I/O with the integration of Precision RF to 40 GHz
Micro-miniature, push-on SMPM style contacts
50 ohm, .047” RF millimeter wave cable (RF047-A)
EMI shielding to limit signal degradation and optimize performance
2, 4 or 6 positions
RF047-A end 2 options: 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMA, SMP, SMPM and Threaded SMPM (SMPMT), size 20 contacts (GPCC-20), Ganged SMPM (Magnum RF®) and U.FL/MHF® 1. Visit the next page to build your solution.
Cable-to-cable solution
Captive panel screws
Strain relief
Features the ultra rugged benefits of URSA® I/O with the integration of Precision RF to 40 GHz
Micro-miniature, push-on SMPM style contacts
50 ohm, .047” RF millimeter wave cable (RF047-A)
EMI shielding to limit signal degradation and optimize performance
2, 4 or 6 positions
RF047-A end 2 options: 1.00 mm, 1.35 mm, 1.85 mm, 2.40 mm, 2.92 mm, SMA, SMP, SMPM and Threaded SMPM (SMPMT), size 20 contacts (GPCC-20), Ganged SMPM (Magnum RF®) and U.FL/MHF® 1. Visit the next page to build your solution.
Cable-to-cable solution
Strain relief
28 or 30 AWG PVC wire with color-coded option available
Four points of contact for an extremely reliable connection
Hyper Claw™ hyperboloid-type contact for extreme high mating cycles
Micro 1.00 mm (.0394") pitch
Double row design, up to 40 positions per row
28 or 30 AWG PVC wire with color-coded option available
End 2 options
Four points of contact for an extremely reliable connection
Hyper Claw™ hyperboloid-type contact for extreme high mating cycles
Micro 1.00 mm (.0394") pitch
Double row design, up to 40 positions per row
Four points of contact for an extremely reliable connection
Hyper Claw™ hyperboloid-type contact for extreme high mating cycles
Micro 1.00 mm (.0394") pitch
Double row design, up to 40 positions per row
28 or 30 AWG Teflon™ fluoropolymer wire
Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
Four points of contact for an extremely reliable connection
Hyper Claw™ hyperboloid-type contact for extreme high mating cycles
Micro 1.00 mm (.0394") pitch
Double row design, up to 40 positions per row
28 or 30 AWG Teflon™ fluoropolymer wire
End 2 options
Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Samtec
Hot swap option available
Through-hole or surface mount
Double row design, up to 40 positions per row
Micro 1.00 mm (.0394") pitch
Hyper Claw™ hyperboloid-type contact for extreme high mating cycles
Four points of contact for an extremely reliable connection
10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
Required for use with IBT1 socket housing
10, 15, 35 & 30 pins on a 1.00 mm (.0394”) pitch
Required for use with IPP1 terminal housing
