Overview

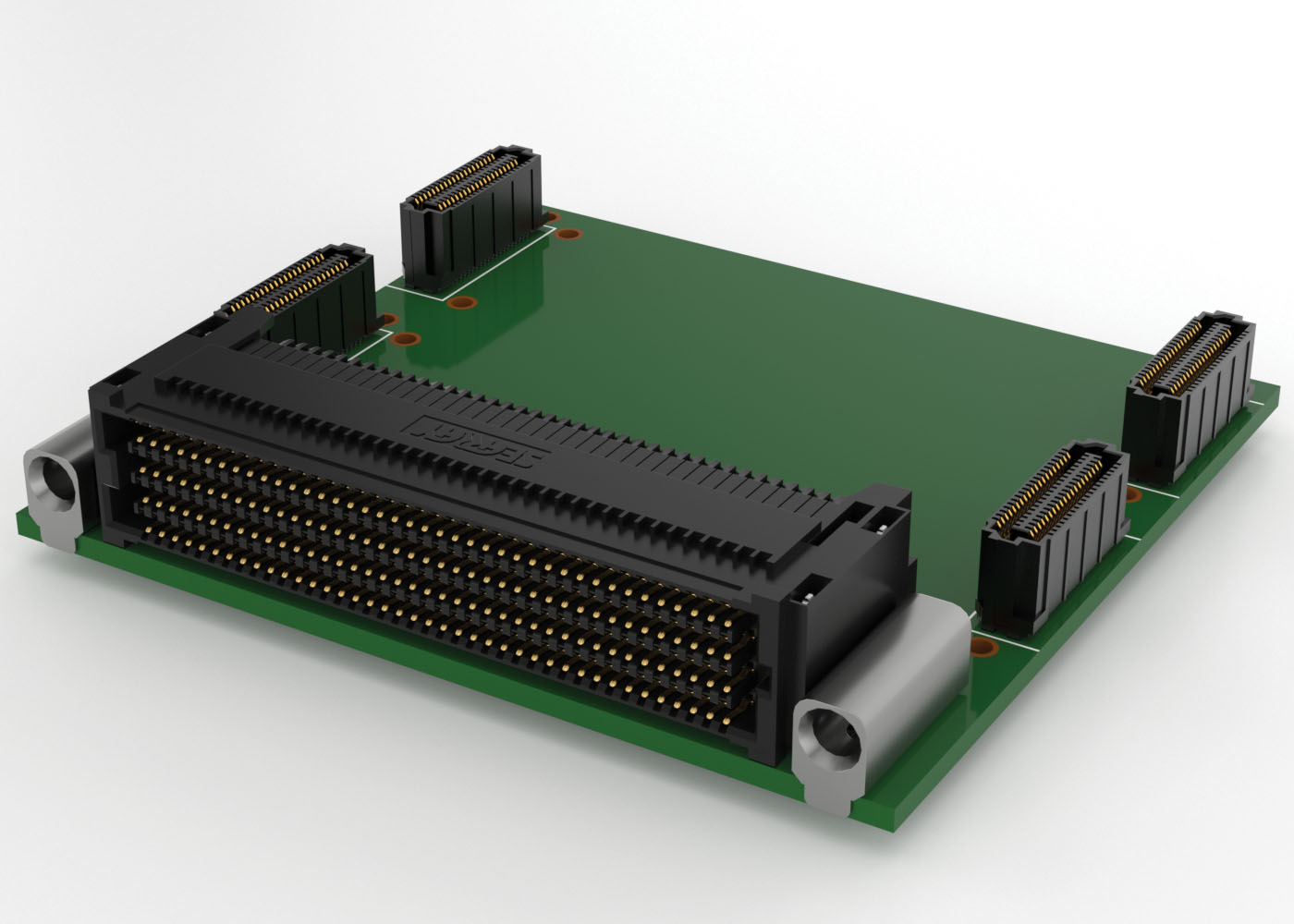

The new VITA™ 93 Standard defines a flexible, next-generation mezzanine concept for small form factor modules. This new standard enables modular, scalable design with rugged and reliable mechanical features. It supports both air and conduction cooling for both front and rear I/O systems. QMC™ mezzanines support 32 Gbps NRZ/64 Gbps PAM4 performance in various carrier card form factors including 3U/6U Eurocards (VPX, cPCI, cPCIe, VME, etc.), VNX+™, PCIe® expansion cards, and others.
VITA™ 93 QMC™ Connectors
VITA™ 93.0

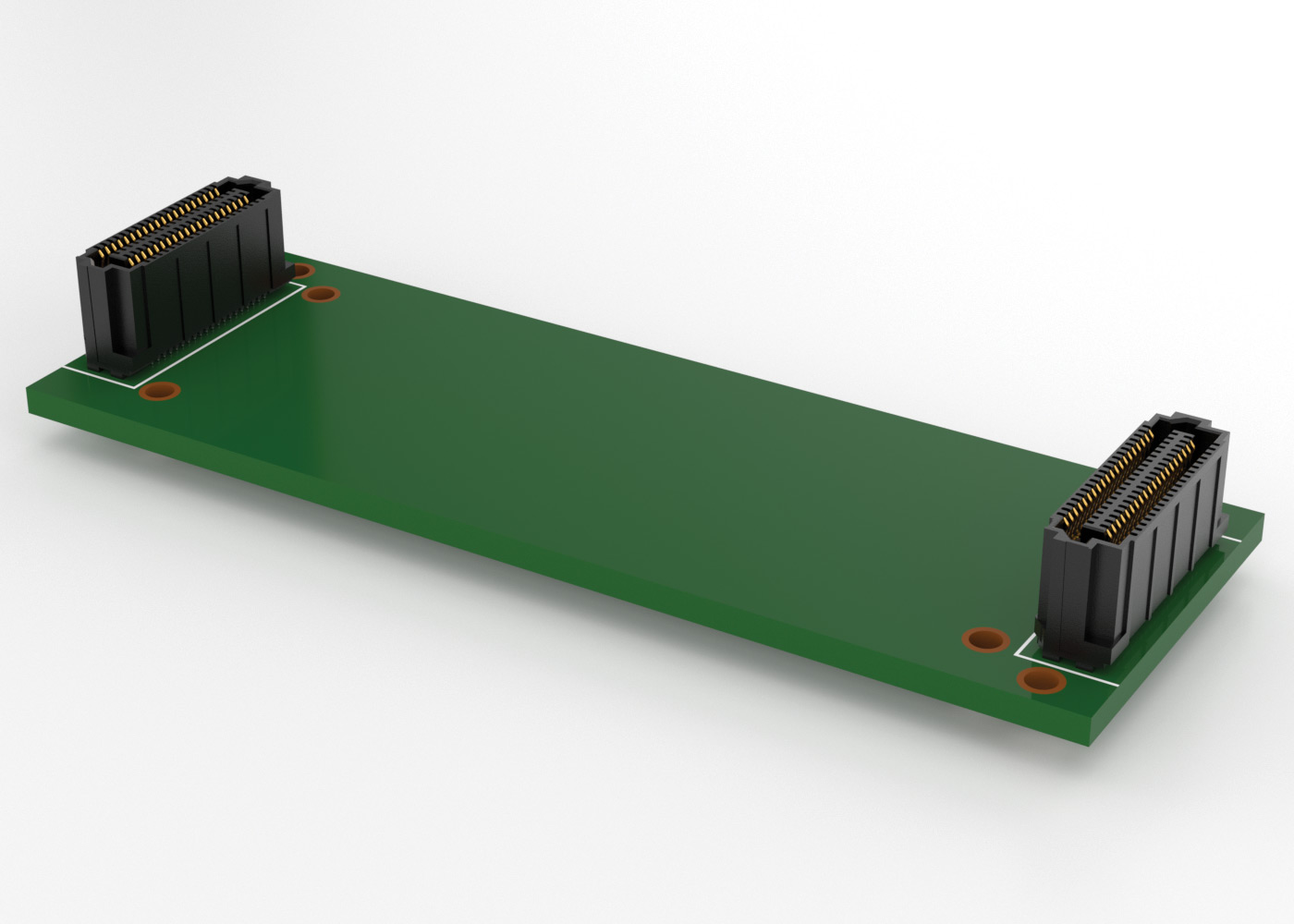

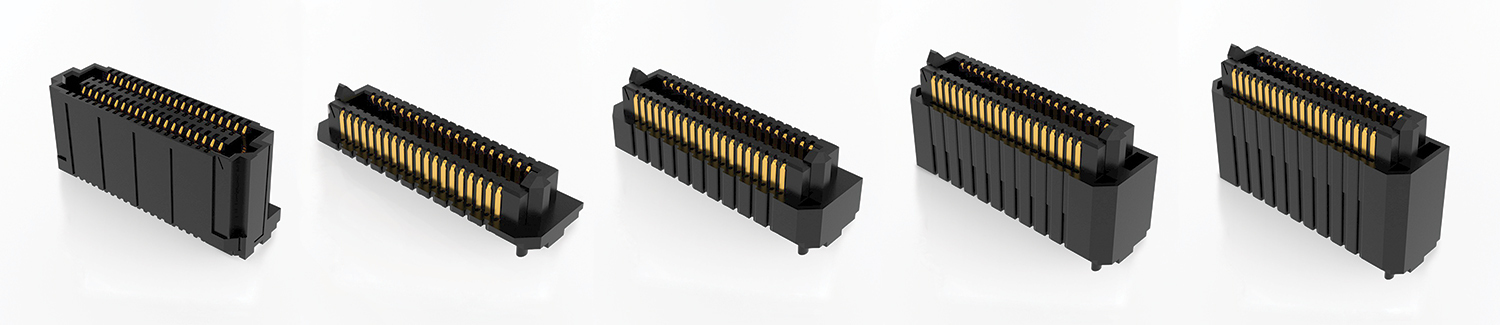

The VITA™ 93.0 Standard relies on the high-speed capabilities and the slim, dense design of Samtec’s AcceleRate® HD Ultra-Dense, Slim Body Arrays. The 80-pin (4 x 20) QMC™ Connectors are available in 9 mm, 11 mm, 14 mm, and 16 mm stack heights. The QMC™ Carrier Connector is used for both host (Jx1) and I/O (Jx2) connections. QMC™ supports single-width, dual-width, and triple-width modules.
VITA™ 93.0 (QMC) Specified Connectors (AcceleRate® HD)
| Samtec PN | Connectors | Options | Design Support | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Socket (Module Connector) |
Terminal (Carrier Connectors) |
Termination Plating |
Alignment Pin (-A) |
Tape & Reel (-TR) |
Prints | 3D | PADS | ||||
| Standard | 9 mm Mated | 11 mm Mated | 14 mm Mated | 16 mm Mated | |||||||
| ASP-246148-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||||
| ASP-246148-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||||
| ASP-246148-03 | X | Tin Lead | X | X | PDF Print | STEP | PADS File | ||||
| ASP-246148-04 | X | Tin Lead | X | PDF Print | STEP | PADS File | |||||
| ASP-239730-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||||
| ASP-239730-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||||
| ASP-239730-03 | X | Tin Lead | X | X | PDF Print | STEP | PADS File | ||||
| ASP-239730-04 | X | Tin Lead | X | PDF Print | STEP | PADS File | |||||
| ASP-239731-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||||
| ASP-239731-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||||
| ASP-239731-03 | X | Tin Lead | X | X | PDF Print | ___ | ___ | ||||
| ASP-239731-04 | X | Tin Lead | X | PDF Print | ___ | ___ | |||||
| ASP-239732-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||||
| ASP-239732-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||||
| ASP-239732-03 | X | Tin Lead | X | X | PDF Print | ___ | ___ | ||||
| ASP-239732-04 | X | Tin Lead | X | PDF Print | ___ | ___ | |||||
| ASP-239733-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||||
| ASP-239733-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||||
| ASP-239733-03 | X | Tin Lead | X | X | PDF Print | ___ | ___ | ||||
| ASP-239733-04 | X | Tin Lead | X | PDF Print | ___ | ___ | |||||
VITA™ 93.1

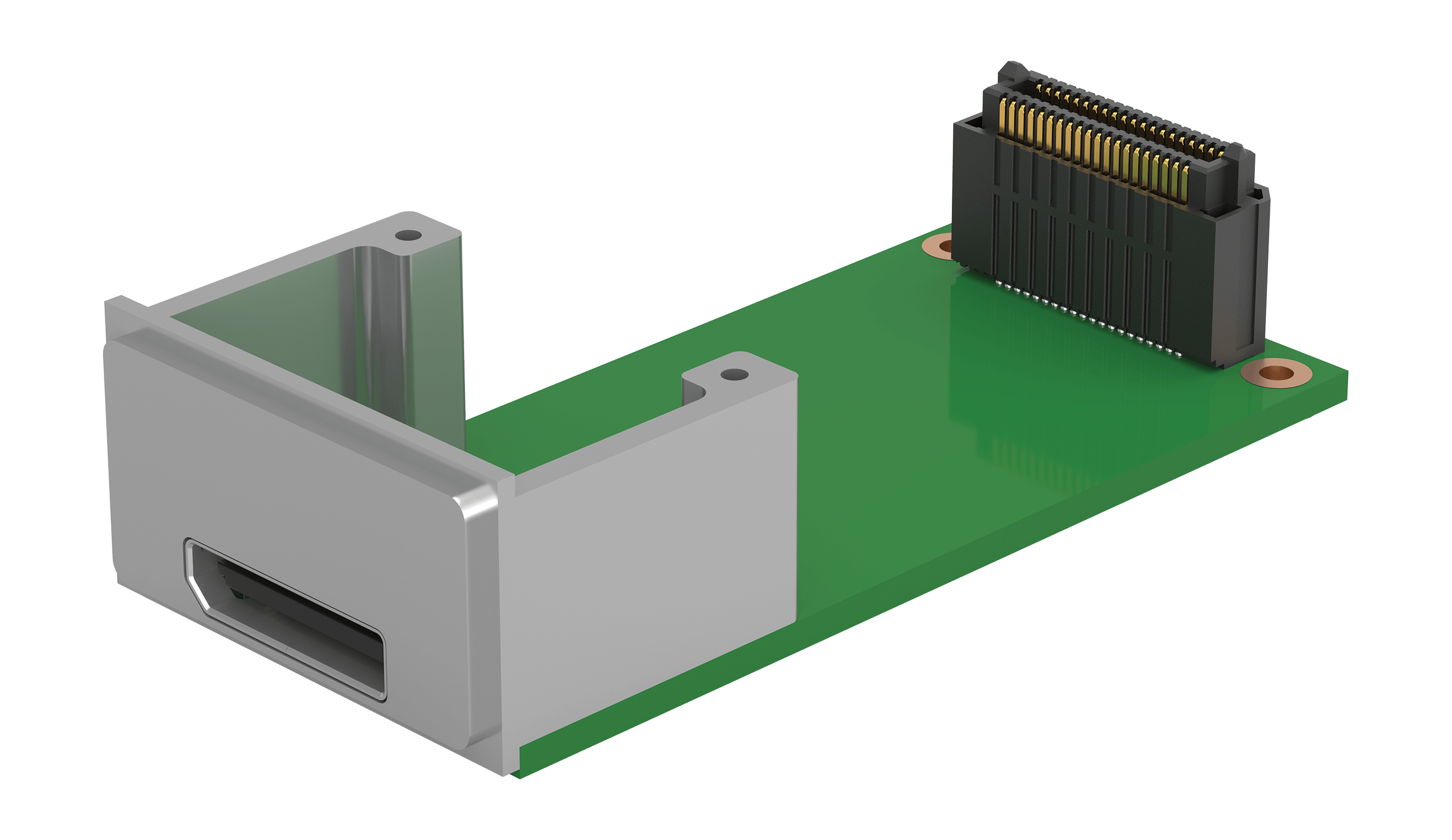

The VITA™ 93.1 Standard defines QMC™ Transition Modules (QTMs), expansion mezzanine cards with front-panel I/O that provide flexible, application-specific connectivity. QTMs route directly to the QMC™ I/O connector and support common interfaces including RJ45, SFP, OCuLink, D-Sub, and USB. The 80-pin (4x20) QMC™ Connectors (AcceleRate® HD) are available in 5 mm and 12 mm mated stack heights.
VITA™ 93.1 (QMC) Specified Connectors (AcceleRate® HD)
| Samtec PN | Connectors | Options | Design Support | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Socket (Carrier Connector) |
Terminal (Module Connectors) |
Termination Plating |
Alignment Pin (-A) |
Tape & Reel (-TR) |
Prints | 3D | PADS | ||
| Standard | 5 mm Mated | 12 mm Mated | |||||||
| ASP-246148-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||
| ASP-246148-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||
| ASP-246148-03 | X | Tin Lead | X | X | PDF Print | STEP | PADS File | ||
| ASP-246148-04 | X | Tin Lead | X | PDF Print | STEP | PADS File | |||
| ASP-239730-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||
| ASP-239730-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||
| ASP-239730-03 | X | Tin Lead | X | X | PDF Print | STEP | PADS File | ||
| ASP-239730-04 | X | Tin Lead | X | PDF Print | STEP | PADS File | |||
| ASP-239733-01 | X | Matte Tin | X | X | PDF Print | STEP | PADS File | ||
| ASP-239733-02 | X | Matte Tin | X | PDF Print | STEP | PADS File | |||
| ASP-239733-03 | X | Tin Lead | X | X | PDF Print | STEP | PADS File | ||
| ASP-239733-04 | X | Tin Lead | X | PDF Print | STEP | PADS File | |||
