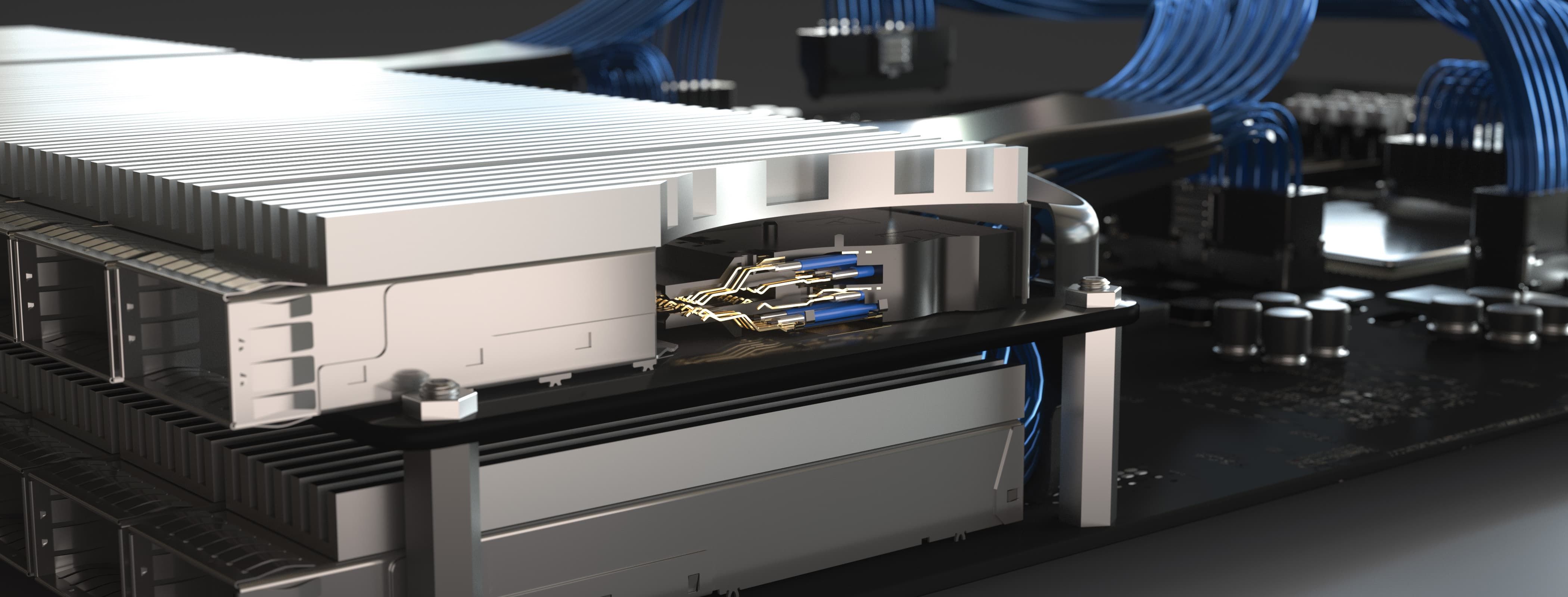

These direct attach Flyover® SFP/QSFP/OSFP cable assemblies route critical high-speed signals through Eye Speed® ultra low skew twinax for improved and extended signal integrity.
Samtec’s Flyover® SFP/QSFP/OSFP Systems provide improved signal integrity and architectural flexibility by routing critical high-speed signals through low-loss, ultra low skew twinax cable, instead of through expensive, lossy PCBs. The ultra-high-density design includes sideband signaling via press-fit contacts to help increase airflow, and a multitude of “End 2” options allow for maximum design flexibility.
Samtec’s proprietary co-extruded, low loss Eye Speed® cable technology eliminates the performance limitations and inconsistencies of individually extruded dielectric twinax cabling, improving signal integrity, bandwidth and reach.
Samtec’s Flyover® designs provide end option flexibility to create a high-speed application specific solution to meet next gen speeds. Flyover® SFP/QSFP/OSFP systems have many End 2 options, including:
As data rates increase, trace length on PCBs decrease. Samtec’s high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The FQSFP SI Evaluation Kits provide system designers and SI engineers an easy-to-use solution for testing FQSFP Product Flyover® QSFP28 Cable System with various End 2 options. The FQSFP to AcceleRate® Flyover® SI Evaluation Kit (REF-205303-X.XX-XX) routes eight high-speed differential pairs through high-precision RF connectors, the FQSFP to AcceleRate® cable assembly and PCB-mount connectors. The FQSFP Evaluation Kits deliver high-quality systems with robust mechanical design. Please contact Samtec’s technical experts at KitsAndBoards@samtec.com for additional information.
Part Number: REF-205303-X.XX-XX
As data rates increase, trace length on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The FQSFP-DD SI Evaluation Kits provide system designers and SI engineers an easy-to-use solution for testing FQSFP-DD Product Double Density Flyover® QSFP28 Cable System with various End 2 options. The FQSFP-DD to NovaRay® Flyover® SI Evaluation Kit (REF-205605-X.XX-XX) routes eight high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to NovaRay® cable assembly and PCB-mount connectors. The FQSFP-DD to AcceleRate® Flyover® SI Evaluation Kit (REF-203424-X.XX-XX) routes eight high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to AcceleRate® cable assembly and PCB-mount connectors. The FQSFP-DD to Si-Fly® Flyover® SI Evaluation Kit (REF-224261-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, the FQSFP-DD to Si-Fly® Low-Profile, High-Density Interconnect System. The FQSFP-DD SI Evaluation Kits deliver high-quality systems with robust mechanical design. Please contact Samtec's technical experts at KitsAndBoards@samtec.com for additional information.
Part Number: REF-205605-X.XX-XX
As data rates increase, trace length on PCBs decrease. Samtec's high-speed, Flyover® cable assemblies simplify PCB design and limit signal degradation in high data rate applications. The FQSFP-D8 SI Evaluation Kits provide system designers and SI engineers an easy-to-use solution for testing FQSFP-D8 Product 800G Flyover® QSFP Double Density Cable System with various End 2 options. The FQSFP-D8 to NovaRay® Flyover® SI Evaluation Kit (REF-228441-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, the FQSFP-D8 to NovaRay® cable assembly and PCB-mount connectors. The FQSFP-D8 to Si-Fly® Flyover® SI Evaluation Kit (REF-226551-X.XX-XX) routes sixteen high-speed differential pairs through high-precision RF connectors, the FQSFP-D8 to Si-Fly® Low-Profile, High-Density Interconnect System. The FQSFP-D8 SI Evaluation Kits deliver high-quality systems with robust mechanical design. Please contact Samtec's technical experts at KitsAndBoards@samtec.com for additional information.
Part Number: REF-228441-X.XX-XX
112 Gbps PAM4 performance
Accepts all MSA compliant SFP pluggable modules
Belly-to-belly capable for maximum density
High-speed channels terminated directly to Eye Speed Thinax™ ultra low skew twinax cable
Low speed positions transmitted through press-fit contact tails
Cage (SFPC-F) and heat sink (HS-SFP) available for optimized thermal performance
Ideal for next gen higher speed applications including Datacom, Medical, Industrial and Instrumentation
End 2 options include AcceleRate® Mini and NovaRay® connectors
Up to 400 Gbps aggregate (112 Gbps PAM4)
4 channels (x4 bidirectional, 8 differential pairs)
Compatible with all MSA QSFP pluggables
Improved signal integrity and increased signal path length at higher data rates
Press-fit tails provide low speed signals and power to the PCB
30 or 34 AWG Eye Speed® ultra low skew twinax cable
Up to 400 Gbps aggregate (56 Gbps PAM4)
8 channels (x8 bidirectional, 16 differential pairs)
Backward compatible with QSFP modules
Belly-to-belly capable for maximum density
Cage (QSFPC-DD) and heat sink (HS-QSFP-DD) available
Variety of end 2 options
34 AWG, 92 Ω ultra low skew twinax cable
Backward compatible with QSFP and QSFP-DD modules
Belly-to-belly capable for maximum density
8 channels (x8 bidirectional, 16 differential pairs)
Up to 800 Gbps aggregate (112 Gbps PAM4)
Cage (QSFPC-D8) and heat sink (HS-QSFP-D8) available
Up to 800 Gbps aggregate (112 Gbps PAM4)
8 channels (x8 bidirectional, 16 differential pairs)
Belly-to-belly capable for maximum density
High-speed channels terminated directly to Eye Speed Thinax™ ultra low skew twinax cable
Low speed positions transmitted through press-fit contact tails
Cage (OSFPC) and heat sink (HS-OSFP) available for optimized thermal performance
End 2 options include AcceleRate® HP, NovaRay® and Si-Fly® LP connectors
224 Gbps PAM4 performance
8 channels (x8 bidirectional, 16 differential pairs)
Belly-to-belly capable for maximum density
High-speed channels terminated directly to Eye Speed Thinax™ ultra low skew twinax cable (32 AWG; 3.5 ps/m max) or Eye Speed® hyper low skew twinax cable (33 AWG; 1.75 ps/m max)
Low speed positions transmitted through press-fit contact tails
Cage (OSFPC) and heat sink (HS-OSFP) available for optimized thermal performance
End 2 options include Si-Fly® HD connectors (co-packaged or near chip)
Available in one or three port configurations
Spring fingers for EMI panel protection
Heat sinks available separately (HS-QSFP-DD)
Designed for use with FQSFP-DD cable assembly
Available in one or two port configurations
Spring fingers fully optimized for best EMI panel protection
Heat sinks available separately (HS-QSFP-D8)
Designed for use with FQSFP-D8 cable assembly
Available in one or six port configurations
Spring fingers for EMI panel protection
Heat sinks available separately (HS-OSFP)
Designed for use with FOSFP cable assembly
Designed for use with SFPC-F cage
Pin style
Optional light pipe
Variety of heights to accommodate specific applications
Designed for use with QSFPC-DD cage
Pin style
Variety of heights to accommodate specific applications
Designed for use with QSFPC-D8 cage
Zipper-Fins for optimal thermal dissipation
Variety of heights to accommodate specific applications
Designed for use with OSFPC cage
Zipper-Fins or Extruded-Fins for optimal thermal dissipation
Variety of heights to accommodate specific applications
1, 2 and 4 port configurations
Indicates position of each port
Designed for use with HS-QSFP heat sink
