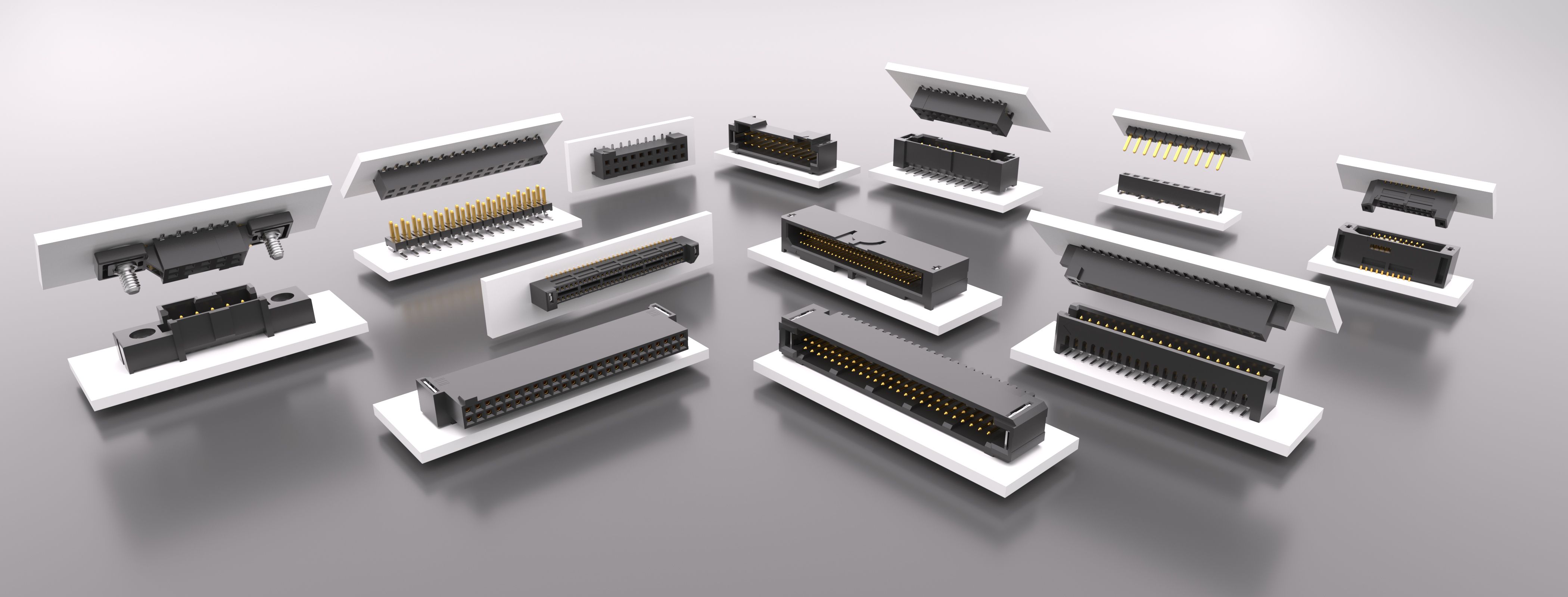

Tiger Eye™ High-Cycle, High-Reliability Connectors

Tiger Eye™ high-cycle, high-reliability connector systems feature Samtec's most rugged contact system rated to 1,000+ mating cycles in 0.80 mm, 1.27 mm and 2.00 mm pitches, with a variety of ruggedizing options.

Family Overview

micro rugged power interconnects video


Available in three pitches (0.80 mm, 1.27 mm and 2.00 mm), these micro rugged interconnects feature Samtec’s Tiger Eye™ contact system for high-reliability and high-cycle applications. The multi-finger, BeCu contacts provide redundant points of contact along with the best combination of mechanical and electrical properties. Increased design flexibility is achieved with the choice of surface mount or through-hole termination, as well as vertical or right-angle orientations and ruggedizing features such as friction latching, weld tabs and locking clips.

Rugged Tiger Eye™ Product Explorer

Rugged Tiger Eye™ explorer

Features

  • High-reliability Tiger Eye™ three-finger BeCu contact system

  • Choice of 0.80 mm, 1.27 mm and 2.00 mm pitch

  • Optional locking and latching systems for higher withdrawal force

  • Standard and cost-saving designs

  • Extended Life Product™ testing available

  • Severe Environment Testing (SET) available (Visit samtec.com/set)

  • Discrete wire cable assemblies, components and tooling available

Tiger Eye™ Contact

Downloads & Resources

Literature

Rugged/Power Interconnect Solutions Guide

Rugged/Power Interconnect Solutions Guide

Download PDF
Military & Aerospace Solutions Guide

Military & Aerospace Solutions Guide

Download PDF

Videos

Samtec Advanced Interconnect Design Tech Center
Samtec Advanced Interconnect Design Tech Center
Micro Rugged & Power Interconnects - Samtec
Micro Rugged & Power Interconnects - Samtec

Products

SFM

High-Reliability Tiger Eye™ Socket Strips, .050" Pitch
Features

  • Application: Polarized single and double row multi-finger BeCu contact system to 100 pins

  • Contact System: Tiger Eye™

  • Up to 8 Gbps performance

  • SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing

  • Meets or exceeds MIL-DTL-55302 testing

  • Pitch: .050" (1.27 mm)

  • Special Features: Screw down and solder nail options available for most rugged requirements

  • Orientation: Vertical, horizontal

  • Termination: Through-hole, surface mount

  • Extended Life Product™ (E.L.P.™)

  • Automotive A-Series product available

SFM Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TFM

High-Reliability Tiger Eye™ Terminal Strips, .050" Pitch
Features

  • Shrouded body for blind mating

  • Pitch: .050" (1.27 mm)

  • Up to 8 Gbps performance

  • SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing

  • Meets or exceeds MIL-DTL-55302 testing

  • Extended Life Product™ (E.L.P.™)

  • Contact System: .018" (0.46 mm) diameter post

  • Orientation: Vertical, right-angle, horizontal

  • Termination: Through-hole, surface mount

  • Application: Mating with high-reliability Tiger Eye™ contact sockets and cable assemblies

  • Multiple stack heights

  • Special Features: Screw down, weld tab and solder nail options available for most rugged requirements

  • Automotive A-Series product available

Series Image for TFM-
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SEM

Micro Tiger Eye™ Socket Strip, 0.80 mm pitch
Features

  • Pitch: 0.80 mm (.0315")

  • Contact System: Tiger Eye™

  • Orientation: Vertical

  • Termination: Surface mount

  • Application: Polarized double row multi-finger Beryllium Copper contact system to 100 pins

  • Special Features: Locking Clip and Weld Tab options available for most rugged requirements

  • Up to 8 Gbps performance

SEM Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SEML

0.80 mm Tiger Eye™ Friction Lock Micro Socket Strip
Features

  • Application: Polarized double row multi-finger Beryllium Copper contact system to 100 pins

  • Contact System: Tiger Eye™

  • Pitch: 0.80 mm (.0315")

  • Up to 8 Gbps performance

  • Special Features: Locking Clip and Weld Tab options available for most rugged requirements

  • Termination: Surface mount

  • Orientation: Vertical

SEML Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TEM

Micro Tiger Eye™ Header Strip, 0.80 mm pitch
Features

  • Application: Mating with high-reliability Tiger Eye™ contact sockets

  • Contact System: 0.31 mm (.012") diameter post

  • Pitch: 0.80 mm (.0315")

  • Up to 8 Gbps performance

  • Special Features: Locking Clip and Weld Tab options available for most rugged requirements

  • Termination: Surface mount

  • Orientation: Vertical, horizontal

TEM Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SMM

Low Profile Socket Strips, 2.00 mm Pitch
Features

  • Application: Single and double row mating to 40 pins per row

  • Contact System: Tiger Eye™

  • Up to 8 Gbps performance

  • Orientation: Vertical

  • Pitch: 2.00 mm (.0787")

  • Special Features: High-reliability multi-finger Beryllium Copper contact system

  • Termination: Surface mount

  • Automotive A-Series product available

SMM Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TMM

Low Profile Tiger Eye™ Header Strips, 2.00 mm Pitch
Features

  • Application: Industry's largest variety of low profile pin counts, terminal lengths and options

  • Contact System: .020" (0.50 mm) square post

  • Up to 8 Gbps performance

  • Orientation: Vertical, right-angle

  • Pitch: 2.00 mm (.0787")

  • Special Features: FleXYZ™ provides design flexibility in all three axes up to four rows wide and 200 pins

  • Termination: Through-hole, surface mount

  • Automotive A-Series product available

TMM Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SFC

.050" Tiger Eye™ Cost-Effective Reliable Socket Strip
Features

  • Uses low cost Tiger Eye™ lite contacts

  • Up to 8 Gbps performance

  • Available in surface mount and through-hole

  • Vertical row configuration

  • Available with tape and reel packaging

SFC Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SFMC

.050" Tiger Eye™ High-Reliability Flexible Pin Count Socket Strip
Features

  • Application: Polarized double row multi-finger Phosphor Bronze contact system to 100 pins

  • Pitch: .050" (1.27 mm)

  • Contact System: Tiger Eye™

  • Up to 8 Gbps performance

  • Orientation: Vertical

  • Termination: Through-hole, surface mount

  • Special Features: Lower cost plating option

  • Automotive A-Series product available

SFMC Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SFML

.050" Tiger Eye™ High-Reliability Locking Socket Strip
Features

  • High-reliability Tiger Eye™ contacts

  • Available in standard or low insertion contacts

  • Available in surface mount and through-hole

  • Low cost Tiger Eye™ Lite contacts available

  • Up to 8 Gbps performance

  • Rugged options available

  • Vertical row configuration

  • Extended Life Product™ (E.L.P.™)

  • Automotive A-Series product available

SFML Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TFML

Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch
Features

  • High-reliability Tiger Eye™ system

  • Up to 8 Gbps performance

  • Multiple stack heights

  • Rugged friction lock feature

  • Rugged options available

  • Shrouded body for blind mating

  • Vertical and horizontal row configurations

  • Extended Life Product™ (E.L.P.™)

  • Automotive A-Series product available

TFML Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SFMH

.050" Tiger Eye™ High-Reliability Socket Strip, Horizontal Mount
Features

  • Surface mount horizontal tails

  • Mates with FSH terminal strip

  • Weld tab and locking clip options

SFMH Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TFC

Tiger Eye™ Cost-Effective Terminal Strip, .050" Pitch
Features

  • Application: Mating with high-reliability Tiger Eye™ contact sockets and cable assemblies

  • Contact System: .018" (0.46 mm) diameter post

  • Pitch: .050" (1.27 mm)

  • Up to 8 Gbps performance

  • Multiple stack heights

  • Orientation: Vertical, right-angle

  • Special Features: Lower cost plating option

  • Termination: Through-hole, surface mount

Series Image for TFC-
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

S2M

High Reliability Tiger Eye™ Discrete Wire Socket, 2.00 mm Pitch
Features

  • Application: Polarized, double row system to 60 pins

  • Meets or exceeds MIL-DTL-55302 testing

  • Up to 8 Gbps performance

  • Contact System: Tiger Eye™

  • Pitch: 2.00 mm (.0787")

  • SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing

  • Orientation: Vertical

  • Special Features: High-reliability multi-finger Beryllium Copper contact system

  • Termination: Through-hole, surface mount

  • Automotive A-Series product available

S2M Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

T2M

High Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm Pitch
Features

  • Pitch: 2.00 mm (.0787")

  • Contact System: 0.50 mm (.020") square post

  • Up to 8 Gbps performance

  • SET Qualified Product: visit samtec.com/SET for more information about Severe Environment Testing

  • Meets or exceeds MIL-DTL-55302 testing

  • Orientation: Vertical, right-angle

  • Termination: Through-hole, surface mount

  • Application: Mating with rugged Tiger Eye™ contact sockets

  • Special Features: Screw down and weld tab features available for the most rugged requirements

  • Automotive A-Series product available

Series Image for T2M-
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

FSH

.050" Shrouded Horizontal Surface Mount Terminal Strip
Features

  • Available with solder lock option

  • Cost saving flash gold plating available

  • Mates with SFMH surface mount socket

  • Surface mount horizontal or right-angle tails

FSH Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

SEMS

0.80 mm Tiger Eye™ Micro Socket Strip, Slim
Features

  • Application: Polarized double row multi-finger Beryllium Copper contact system to 50 pins

  • Contact System: Tiger Eye™

  • Pitch: 0.80 mm (.0315")

  • Up to 8 Gbps performance

  • Special Features: Locking Clip and Weld Tab options available for most rugged requirements

  • Termination: Surface mount

  • Orientation: Vertical

SEMS Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

TEMS

0.80 mm Tiger Eye™ Micro Terminal Strip, Slim
Features

  • Application: Mating with rugged Tiger Eye™ contact sockets

  • Contact System: 0.31 mm (.012") diameter post

  • Pitch: 0.80 mm (.0315")

  • Up to 8 Gbps performance

  • Special Features: Locking Clip and Weld Tab options available for most rugged requirements

  • Orientation: Vertical

  • Termination: Surface mount

TEMS Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

FOLC

.050" FOURRAY™ Quad Row Tiger Eye™ Socket Strip
Features

  • Application: Polarized four row multi-finger Beryllium Copper contact system to 200 pins

  • Contact System: Tiger Eye™

  • Up to 8 Gbps performance

  • Orientation: Vertical

  • Pitch: .050" (1.27 mm)

  • Special Features: Optional low insertion force contacts

  • Termination: Through-hole, mixed technology

FOLC Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

MOLC

.050" FOURRAY™ Quad Row Terminal Strip
Features

  • Application: Mating with rugged Tiger Eye™ contact sockets

  • Contact System: .018" (0.46 mm) diameter post

  • Up to 8 Gbps performance

  • Orientation: Vertical

  • Pitch: .050" (1.27 mm)

  • Special Features: Locking clip option available for most rugged requirements

  • Termination: Through-hole, surface mount, mixed technology

MOLC Series Thumbnail Image
Download 3D Model Configure and Add to CartConfigure a Free SampleTechnical Details

Contact Sales

Don't want to fill out a form?

Chat with a product expert directly.

More Rugged Board-to-Board Systems

Samtec Blog Logo
Tiger lying down facing forward
