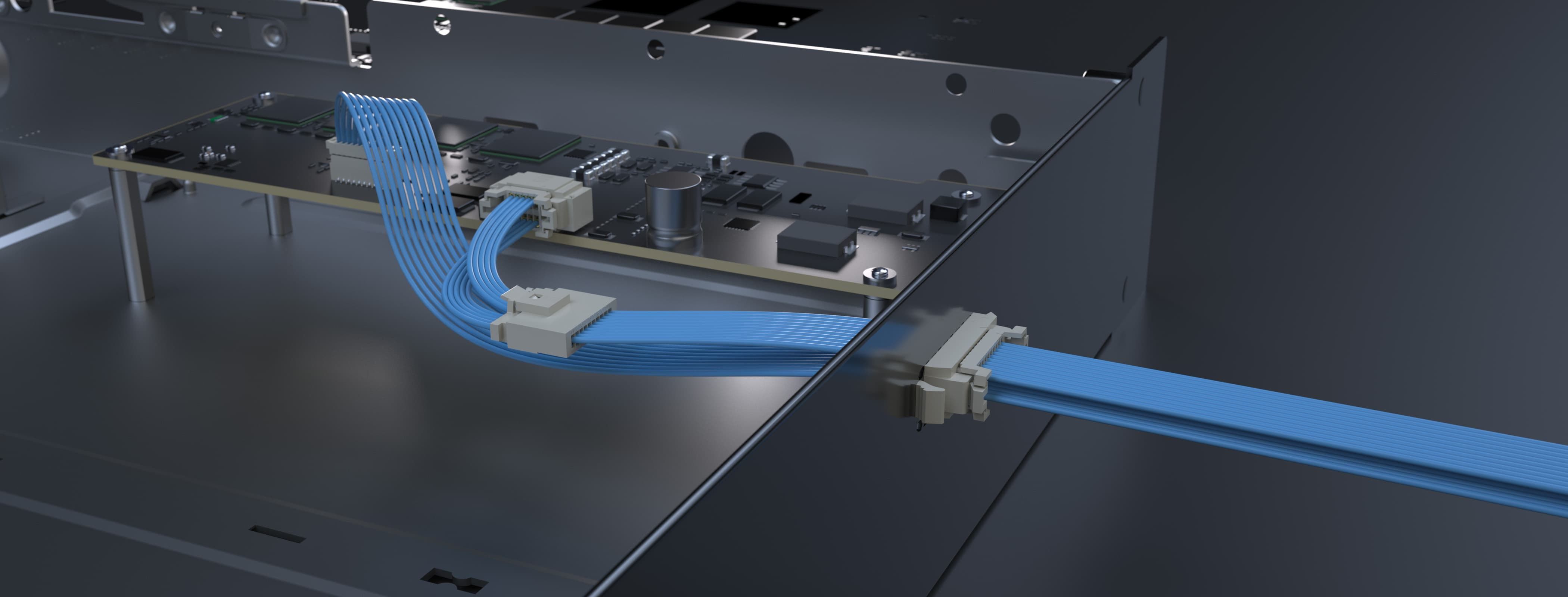

Micro Mate™ 1.00 mm pitch discrete wire cables and connectors feature a space-saving design that supports cable-to-board, cable-to-cable and cable-to-panel applications.
Family Overview
Features
One product family that supports cable-to-board, cable-to-cable and cable-to-panel applications
Extremely small form factor compared to other 28 AWG assemblies
Current rating: 2.7 A max
Voltage rating: 250 VAC / 353 VDC max
Rugged single or double latching for a solid connection
Panel mount version fits .033"–.090" panel thickness
Crimp-style dual leaf contact system
2 through 20 total contacts (single row)
4 through 40 total contacts (double row)
Teflon™ fluoropolymer wire available for high temp or halogen free applications
Extremely low profile, right-angle board mount connector/cable mate
Available as components or complete assemblies
Assembly tooling available (Visit samtec.com/tooling)
Downloads & Resources
Literature
Products
S1SS - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cables, Single Row, Socket / Female to Socket / Female, Latch Option, Micro Mate™
Features
28 or 30 AWG
Crimp-style dual leaf contact
2, 3, 5, 7, 10, 15 and 20 contacts
1.00 mm (.0394") pitch
S1SST - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cables, Single Row, Socket / Female to Socket / Female, Teflon™ Fluoropolymer (FEP), Latch Option, Micro Mate™
Features
1.00 mm (.0394") pitch
Crimp-style dual leaf contact
2, 3, 5, 7, 10, 15 and 20 contacts
28 or 30 AWG Teflon™ fluoropolymer cable
S1SD - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cables, Double Row, Socket / Female to Socket / Female, Latching, Micro Mate™
Features
28 and 30 AWG cable
Crimp-style dual leaf contact
2 through 20 contacts per row
1.00 mm (.0394") pitch
S1SDT - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cables, Double Row, Socket / Female to Socket / Female, Teflon™ Fluoropolymer (FEP), Latching, Micro Mate™
Features
28 and 30 AWG Teflon™ fluoropolymer cable
Crimp-style dual leaf contact
2 through 20 contacts per row
1.00 mm (.0394") pitch
T1M - 1mm (.0394 Inch) Pitch Wire to Board Shrouded Box Header Connectors, Single or Double Row, Right Angle or Vertical Option, Latching, Micro Mate™
Features
2, 3, 5, 7, 10, 15 and 20 contacts
Vertical and horizontal surface mount
1.00 mm (.0394") pitch
T1SS - 1mm (.0394 Inch) Pitch Wire to Wire Header Cables, Single Row, Plug / Male to Plug / Male or Socket / Female, Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
28 or 30 AWG wire
2 – 10 positions
T1SST - 1mm (.0394 Inch) Pitch Wire to Wire Header Cables, Single Row, Plug / Male to Plug / Male or Socket / Female, Teflon™ Fluoropolymer (FEP), Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
28 or 30 AWG Teflon™ fluoropolymer cable
2 – 10 positions
T1SD - 1mm (.0394 Inch) Pitch Wire to Wire Header Cables, Double Row, Plug / Male to Plug / Male or Socket / Female, Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
2 – 10 positions per row
28 or 30 AWG wire
T1SDT - 1mm (.0394 Inch) Pitch Wire to Wire Header Cables, Double Row, Plug / Male to Plug / Male or Socket / Female, Teflon™ Fluoropolymer (FEP), Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
2 – 10 positions per row
28 or 30 AWG Teflon™ fluoropolymer cable
T1PS - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cables, Single Row, Plug / Male to Socket / Female, Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
3 – 10 positions
28 or 30 AWG wire
T1PST - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cables, Single Row, Plug / Male to Socket / Female, Teflon™ Fluoropolymer (FEP), Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
3 – 10 positions
28 or 30 AWG Teflon™ fluoropolymer cable
T1PD - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cables, Double Row, Plug / Male to Socket / Female, Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
28 or 30 AWG wire
2 – 10 positions per row
T1PDT - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cables, Double Row, Plug / Male to Socket / Female, Teflon™ Fluoropolymer (FEP), Latching, Micro Mate™
Features
Choice of single ended, double ended or transfer end
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
28 or 30 AWG Teflon™ fluoropolymer cable
2 – 10 positions per row
ISS1 - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cable Connector Crimp Housings, Single Row, Socket / Female, Latch Option, Micro Mate™
Features
2, 3, 5, 7, 10, 15 and 20 contacts
Hand tool available
Semi-auto assembly tooling available
1.00 mm (.0394") pitch
ISD1 - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Header Cable Connector Crimp Housings, Double Row, Socket / Female, Latching, Micro Mate™
Features
2 through 20 contacts per row
Hand tool available
Semi-auto assembly tooling available
1.00 mm (.0394") pitch
CC09R - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Crimp Terminal Contact Socket / Receptacle (Female), Full Reel, Micro Mate™
Features
Reeled contacts (30k reel)
1.00 mm (.0394") pitch
Crimp-style dual leaf contact
Assembly tooling available (Visit samtec.com/tooling)
CC09M - 1mm (.0394 Inch) Pitch Wire to Board / Wire to Wire Crimp Terminal Contact Socket / Receptacle (Female), Mini Reel, Micro Mate™
Features
Reeled contacts (5k reel)
1.00 mm (.0394") pitch
Crimp-style dual leaf contact
Assembly tooling available (Visit samtec.com/tooling)
IST1 - 1mm (.0394 Inch) Pitch Wire to Wire Header Cable Connector Crimp Housings, Single Row, Plug / Male, Latching, Micro Mate™
Features
2 – 10 positions
1.00 mm (.0394") pitch
Semi-auto assembly tooling available
Hand tool available
ISP1 - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cable Connector Crimp Housings, Single Row, Plug / Male, Latching, Micro Mate™
Features
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
3 – 10 positions
1.00 mm (.0394") pitch
Semi-auto assembly tooling available
Hand tool available
IDT1 - 1mm (.0394 Inch) Pitch Wire to Wire Header Cable Connector Crimp Housings, Double Row, Plug / Male, Latching, Micro Mate™
Features
2 – 10 positions
1.00 mm (.0394") pitch
Semi-auto assembly tooling available
Hand tool available
IDP1 - 1mm (.0394 Inch) Pitch Wire to Wire Panel Mount Header Cable Connector Crimp Housings, Double Row, Plug / Male, Latching, Micro Mate™
Features
Fits .033” (0.84 mm), .062” (1.57 mm) and .090” (2.29 mm) thick panels
1.00 mm (.0394") pitch
Semi-auto assembly tooling available
Hand tool available
2 – 10 positions
TC37M - 1mm (.0394 Inch) Pitch Wire to Wire Crimp Terminal Contact Plug / Pin (Male), Mini Reel, Micro Mate™
Features
Reeled contacts (5k reel)
Assembly tooling available
1.00 mm (.0394") pitch
TC37R - 1mm (.0394 Inch) Pitch Wire to Wire Crimp Terminal Contact Plug / Pin (Male), Full Reel, Micro Mate™
Features
Reeled contacts (25k reel)
Assembly tooling available
1.00 mm (.0394") pitch
